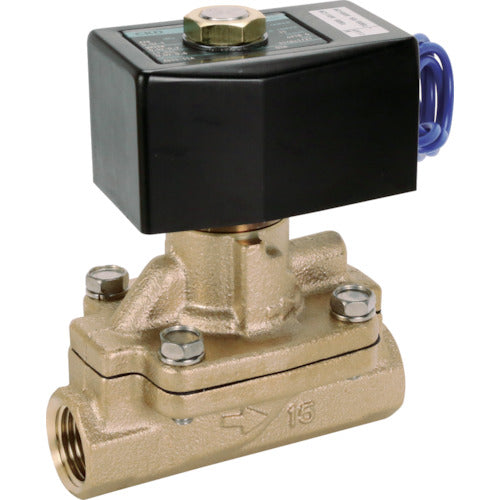

Catalog number: AD11-25A-03A-DC24V Features: ●Multi-Rex valve series for controlling many types of fluids, including water, air, kerosene, and oil. Applications: ●For ON/OFF control of water, air, kerosene, and oil Specifications: ●Effective cross-sectional area (mm2): 231 ●Connection port size: Rc1 ●Power supply (V): DC24 ●Operating pressure (MPa): 0.02 to 0.7 ●Operating fluid: air, water, kerosene, oil ●Fluid temperature (℃): -10 to 60 (no freezing) ●Coil housing: Open frame type lead wire ●Open frame type lead wire (IP65 equivalent): 300mm Material/Finish: ●Body: Bronze ●Sealing material: Nitrile rubber
