CKD Pilot operated 2-port solenoid valve (Multi-rex valve) AP11-15A-03A-DC24V 1 unit
CKD Pilot operated 2-port solenoid valve (Multi-rex valve) AP11-15A-03A-DC24V 1 unit
Regular price
¥13,530
Regular price
Sale price
¥13,530
Unit price
/
per
Shipping calculated at checkout.
Couldn't load pickup availability

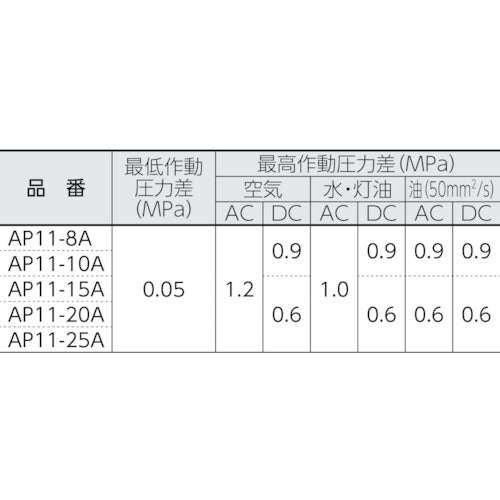

Catalog number: AP11-15A-03A-DC24V Features: ●Multilex valve series that controls many types of fluids, including water, air, kerosene, and oil. Uses: ●For ON/OFF control of water, air, kerosene, and oil Specifications: ●Effective cross-sectional area (mm2): 105 ●Connection diameter: Rc1/2 ●Power supply (V): DC24 ●Fluids used: air, water, kerosene, oil ●Fluid temperature (℃): -10 to 60 (no freezing) ●Sonic conductance (C [dm3/(S·bar)]): 21 ●Operating pressure: 0.05 to 0.9 MPa (8A to 10A), 0.05 to 0.6 MPa (15A to 25A) ●Fluids used: air, water, kerosene, oil ●Fluid temperature: -10 to 60℃ (no freezing) ●Open frame lead wire (IP65 equivalent): 300 mm Material/Finish: ●Body: bronze ●Seal: nitrile rubber ●O-ring: nitrile rubber
