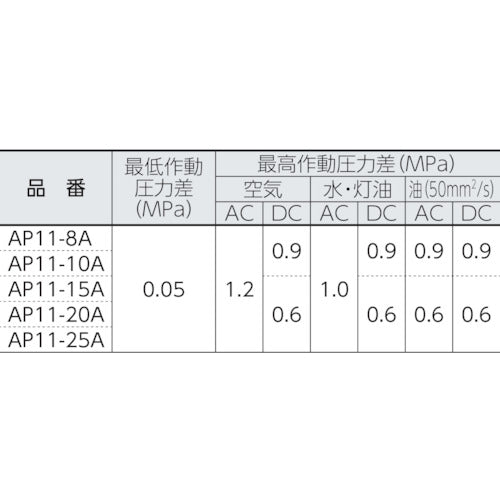

Catalog number: AP11-20A-03A-DC24V Features: ●Multi-Rex valve series that controls many types of fluids, including water, air, kerosene, and oil. Applications: ●For ON/OFF control of water, air, kerosene, and oil Specifications: ●Effective cross-sectional area (mm2): 162 ●Connection diameter: Rc3/4 ●Power supply (V): DC24 ●Fluids used: air, water, kerosene, oil ●Fluid temperature (℃): -10 to 60 (no freezing) ●Operating pressure: 0.05 to 0.9 MPa (8A to 10A), 0.05 to 0.6 MPa (15A to 25A) ●Fluids used: air, water, kerosene, oil ●Fluid temperature: -10 to 60℃ (no freezing) ●Open frame type lead wire (IP65 equivalent): 300mm Material/Finish: ●Body: bronze ●Seal: nitrile rubber ●O-ring: nitrile rubber
