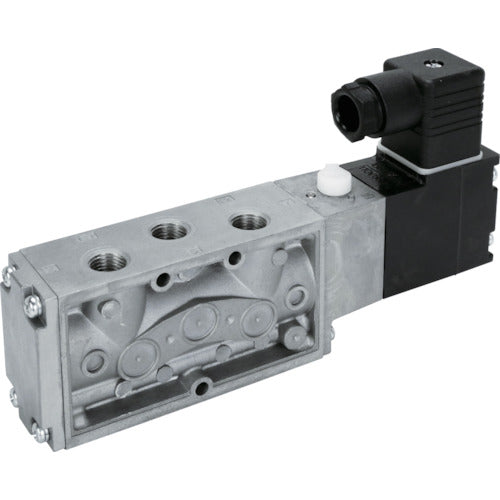

CKD Pilot operated 5-port valve Select valve 4F310-08-DC24V 1 piece

Catalog number: 4F310-08-DC24V Features: ● Single solenoid type 5-port valve. ● Direct piping. ● Suitable for a wide range of fields. ● Uses a soft spool system, allowing long-term use, low-frequency use, and resistance to miscellaneous air. ● Uses concentrated exhaust for the breathing hole and PE port, so there is no malfunction due to clogging with dirt in dusty environments, and it can be used in adverse environments. Uses: ●For driving cylinders of Φ63 to Φ100 Specifications: ●Connection diameter: Rp1/4 ●Power supply (V): DC24 ●Operating pressure (MPa): 0.1 to 1 ●Operating fluid: Compressed air ●Fluid temperature (℃): 5 to 60 ●Sonic conductance (C [dm3/(S・bar)]): 3.9 ●Wire connection: DIN terminal box (Pg11) (4F1 series only: Small terminal box without lead wire) ●Operating fluid: Compressed air ●Maximum operating pressure: 1.0MPa ●Ambient temperature: -10 to 60℃ (no freezing) ●Fluid temperature: 5 to 60℃ Materials/Finish: ●Body: Aluminum die-cast, seal assembly: Urethane rubber
