CKD Pilot operated 5-port valve Select valve 4F420-10-DC24V 1 unit

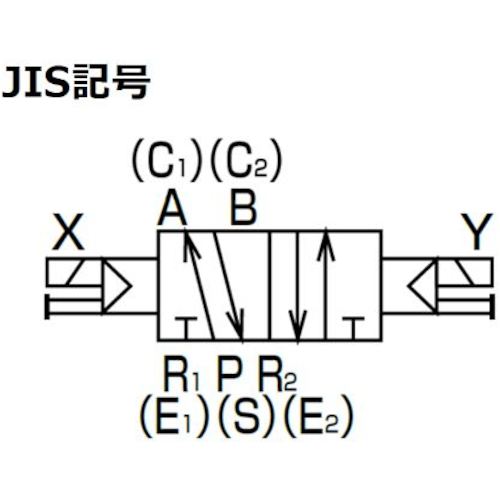

Catalog number: 4F420-10-DC24V Features: ●Double solenoid type 5-port valve. ●Subplate piping. ●Applicable to a wide range of fields. ●Soft spool system allows long-term use, low-frequency use, and is resistant to miscellaneous air. ●Concentrated exhaust from the breathing hole and PE port prevents malfunction due to clogging in dusty environments, and can be used in adverse environments. Uses: ●For driving cylinders of Φ63 to Φ100 Specifications: ●Effective cross-sectional area (mm2): 25 ●Connection diameter: Rc3/8 ●Operation method: Pilot-operated soft spool valve ●Power supply (V): DC24 ●Number of ports: 5 ●Operating pressure (MPa): 0.1 to 1.0 ●Operating fluid: Compressed air ●Fluid temperature (℃): 5 to 60 ●Sonic conductance (C [dm3/(S・bar)]): 5.0 ●Wire connection: DIN terminal box (Pg11) Material/Finish: ●Body: Aluminum die-cast
