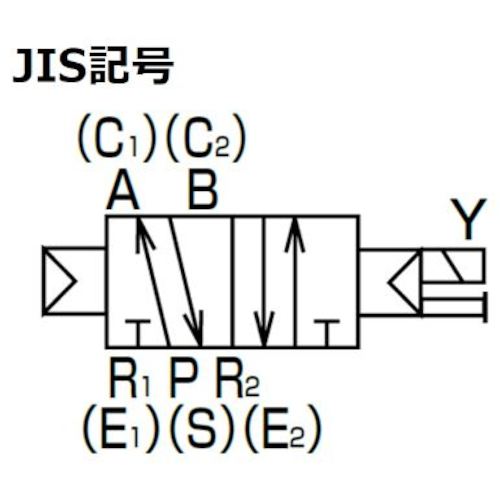

CKD Pilot operated 5-port valve Select valve 4F510-10-DC24V 1 unit

Catalog number: 4F510-10-DC24V Features: ● Single solenoid type 5-port valve. ● Subplate piping. ● Suitable for a wide range of fields. ● Uses a soft spool system, allowing long-term use, low-frequency use, and resistance to miscellaneous air. ● Uses concentrated exhaust for the breathing hole and PE port, so there is no malfunction due to clogging with dirt in dusty environments, and it can be used in adverse environments. Uses: ●For driving cylinders of Φ80 to 160 Specifications: ●Effective cross-sectional area (mm2): 50 ●Connection diameter: Rc3/8 ●Operating method: Pilot-operated soft spool valve ●Power supply (V): DC24 ●Number of ports: 5 ●Operating pressure (MPa): 0.1 to 1.0 ●Operating fluid: Compressed air ●Fluid temperature (℃): 5 to 60 ●Sonic conductance (C [dm3/(S・bar)]): 10 ●Wire connection: DIN terminal box (Pg11) Material/Finish: ●Body: Aluminum die-cast, seal assembly: Urethane rubber
