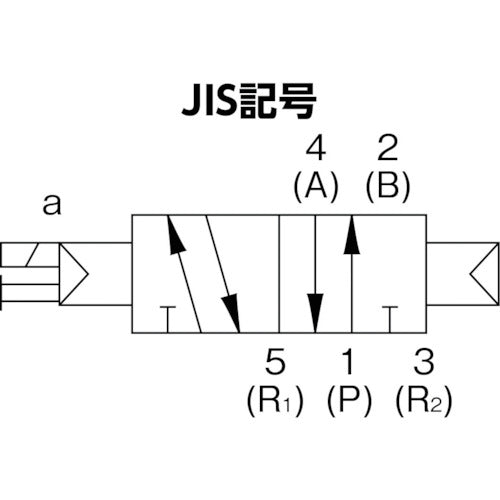

CKD Pilot operated 5 port valve 4GA/4GB series 4GA210R-C8-3 1 unit

Catalog number: 4GA210R-C8-3 Features: ● Single solenoid type 5-port valve. ● Direct piping type. ● With detailed support, safety is enhanced, and a protective cover is standardly equipped on the manual operation mechanism. ● Improved reliability. Durability of over 100 million times (single solenoid, under in-house conditions) ● Improved ease of use, with a tool-free manual operation mechanism. ● In the case of an E-type connector lead wire, the wiring connector can be shared between the top and side wiring, and can be changed during installation. ● A stand-alone valve for mounting on a base is also available for maintenance purposes. (Example: 4GB*29R series) Application: ● Switching the direction (flow path) of air pressure supplied to air cylinders and other actuators in pneumatic circuits Specifications: ● Effective cross-sectional area (mm2): 12 ● Connection diameter: φ8 one-touch fitting ● Operation method: Pilot-operated soft spool valve ● Power supply (V): DC24 ● Number of ports: 5 ● Operating pressure (MPa): 0.2 to 0.7 ● Fluid used: Compressed air ● Fluid temperature (℃): 5 to 55 ● Sonic conductance (C [dm3/(S・bar)]): 2.4 ● Width (mm): 20 ● Height (mm): 65 ● Length (mm): 90 ● Sonic conductance (C [dm3/(S・bar)]): 2.4 ● Operating pressure: 0.2 to 0.7MPa ● Wire connection: Grommet lead wire
