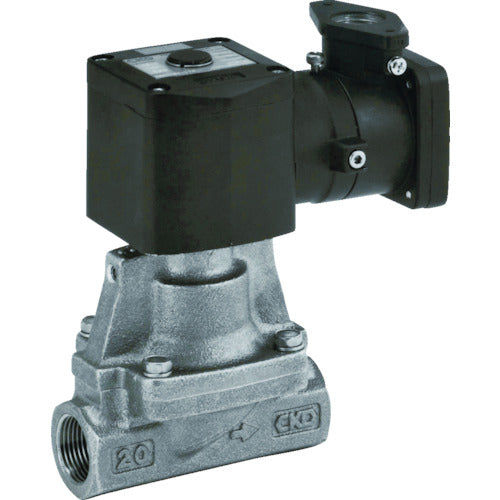

CKD Pilot-operated explosion-proof two-port valve AD series (for steam) AP11E2-20A-C4T-AC200V 1 unit

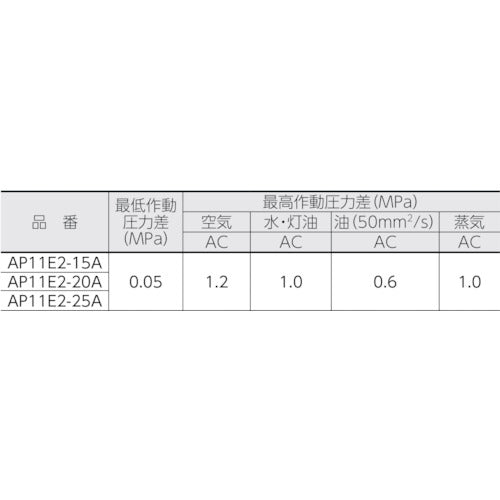

Catalog number: AP11E2-20A-C4T-AC200V Specifications: ● Effective cross-sectional area (mm2): 162 ● Connection diameter: Rc3/4 ● Operation method: Piston drive type ● Power supply (V): AC200 ● Number of ports: 2 ● Operating pressure (MPa): 0.05 to 1.2 (air), 0.05 to 1.0 (water, kerosene, steam), 0.05 to 0.6 (oil) ● Operating fluid: steam, air, water, kerosene, oil ● Fluid temperature (℃): 5 to 181 ● Fluid temperature: 5 to 181℃ ● Operating pressure: 0.05 to 2MPa (fluid: 1MPa for steam) ● Pressure-resistant explosion-proof construction d2G2 (explosion class 2, ignition degree G2) ● NC (open when energized) ● Piston drive type
