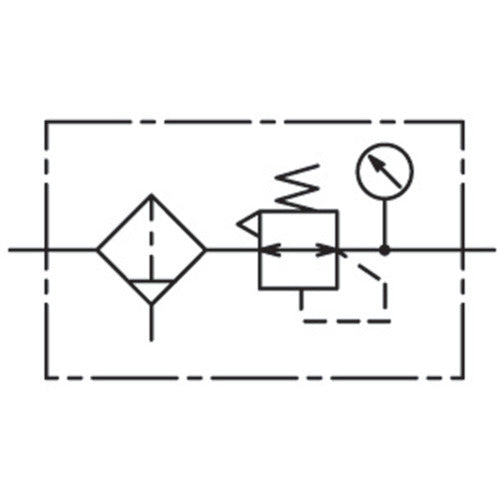

Catalog number: W3000-10-WF Features: * Air filter and regulator integrated into a compact unit. * Removes drainage and dust from the air and adjusts pressure. * The element used has a unique chemical fiber structure with a rough surface and finer grains toward the inside. This greatly reduces clogging and extends the life of the element. Applications: * Removes drainage and dust from the air and adjusts pressure. Specifications: Filtration accuracy (μm): 5 Operating pressure (MPa): 1 Air flow rate (m3/min): 2.43 Set pressure (MPa): 0.05-0.85 Connection size: Rc3/8 Overall length (mm): 252.0 Overall width (mm): 63 Fluid used: Air Fluid used: Air Fluid temperature: 5-60°C Drain discharge method: Auto drain With pressure gauge Note: For the W3000-8000-WF series, the minimum operating pressure of the auto drain is 0.1 MPa. Air is purged along with the initial drain until it rises by 0.1 MPa.
