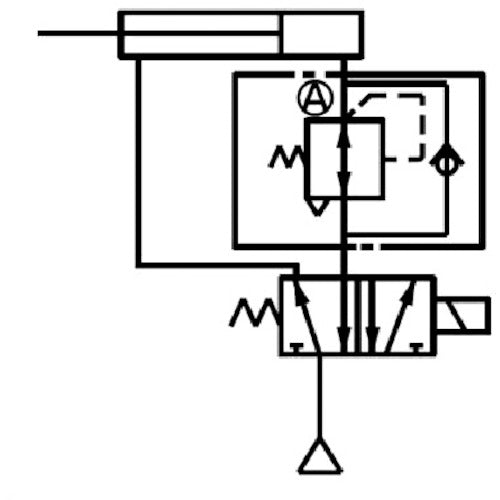

Catalogue number: R1100-6-W Features: ●Adjusts air pressure. ●Built-in backflow function exhausts secondary pressure to primary. ●Compact reverse regulator (pressure reducing valve) with built-in pressure gauge. ●Pressure adjustment can be done with one hand. ●One-push lock. Applications: ●Install between the cylinder and valve when you want to reduce pressure on only one side of the cylinder. Specifications: ●Set pressure (MPa): 0.05-0.85 ●Operating pressure (MPa): 1 ●Processing air flow rate (［［M3］］/min): 0.77 ●Connection port size: Rc1/8 ●Total length (mm): 93 ●Total width (mm): 40 ●Operating fluid: Compressed air ●Fluid temperature (℃): 5-60 ●Operating fluid: Compressed air ●Fluid temperature: 5-60℃ ●With pressure gauge
