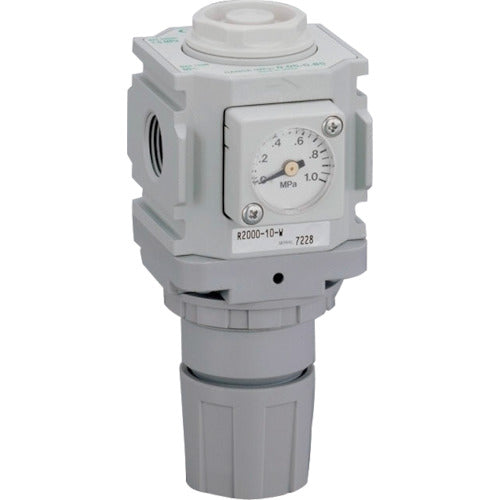

CKD Reverse Regulator R2100-10-W 1 piece

Catalog number: R2100-10-W Features: ●Adjusts air pressure. ●Built-in backflow function exhausts secondary pressure to primary. ●Compact reverse regulator (pressure reducing valve) with built-in pressure gauge. ●Pressure adjustment can be done with one hand. ●One-push lock. Applications: ●Install between the cylinder and valve when you want to reduce pressure on only one side of the cylinder. Specifications: ●Set pressure (MPa): 0.05-0.85 ●Operating pressure (MPa): 1 ●Processing air flow rate (［［M3］］/min): 2.5 ●Connection port size: Rc3/8 ●Total length (mm): 120 ●Total width (mm): 50 ●Operating fluid: Compressed air ●Fluid temperature (℃): 5-60 ●0.31kg ●Operating fluid: Compressed air ●Fluid temperature: 5-60℃ ●Set pressure range: 0.05-0.85MPa ●With pressure gauge
