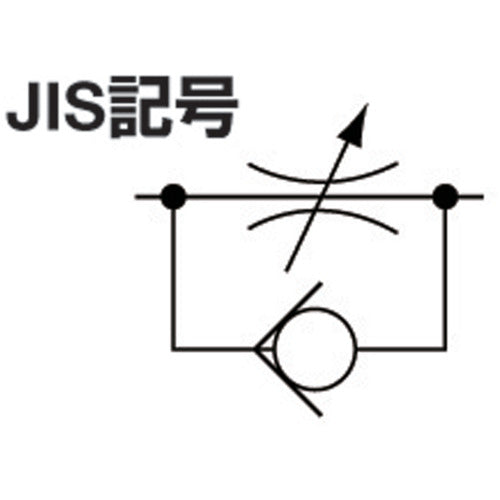

Catalog number: SC3W-6-6 Features: * Elbow type speed control valve with one-touch fitting. * Piping threads are coated with sealant. * Rotates, so piping direction is free. * Flame-retardant material (UL94 standard V-0 equivalent) is used for resin part. Applications: * For speed adjustment of pneumatic cylinders. Specifications: Connection size: R1/8 Compatible tube outer diameter D (mm): 6 Compatible tube outer diameter (mm): 6 Operating pressure (MPa): 0.05-1.0 Operating fluid: compressed air Fluid temperature (℃): 5-60 (but not frozen) Ambient temperature (℃): 0-60 Meter-out type Connection type: screw-in Flow type: standard flow rate Operating fluid: compressed air Fluid temperature: 5-60℃ Ambient temperature: 0-60℃ Operating pressure: 0.05-1MPa Material/Finish: Brass parts: electroless nickel plating Sealing material: nitrile rubber Note: Fluid temperature and ambient temperature must not freeze. Depending on the air quality (dew point), adiabatic expansion may cause freezing. Flow rate is the atmospheric pressure equivalent value at a pressure of 0.5MPa.
