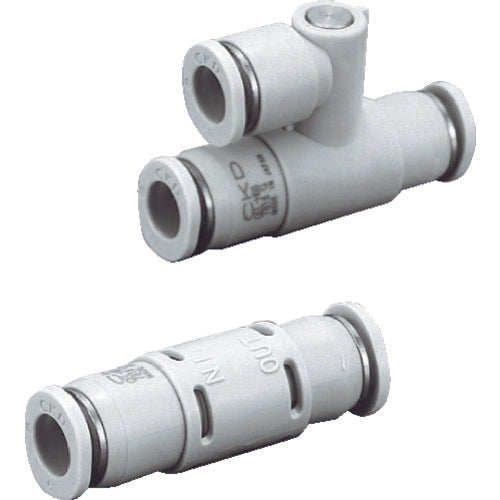

CKD Quick Exhaust Valve with One-Touch Fitting QEL Series Φ4 Exhaust Port Fitting Type QEL-H44 1 pc

Catalog number: QEL-H44 Features: ● Effective in preventing condensation caused by adiabatic expansion. ● Ozone-resistant material is used as standard for the valve body to prevent deterioration. ● Environmentally friendly product made from materials that eliminate substances that have a negative impact on the global environment. Specifications: ● Effective cross-sectional area (mm2): 1.8 ● Connection diameter: φ4 one-touch fitting ● Compatible tube outer diameter D (mm): 4 ● Total length (mm): 35.2 ● Operating pressure (MPa): 0.1-0.7 ● Operating temperature range (℃): 5-60 (but do not freeze) ● Fluid used: Air ● Effective cross-sectional area (mm2) (IN-OUT): 1.8 ● Effective cross-sectional area (mm2) (OUT-EXH): 1.8 ● Compact and space-saving Materials/Finish: ● Body: Polybutylene terephthalate ● O-ring: Nitrile rubber
