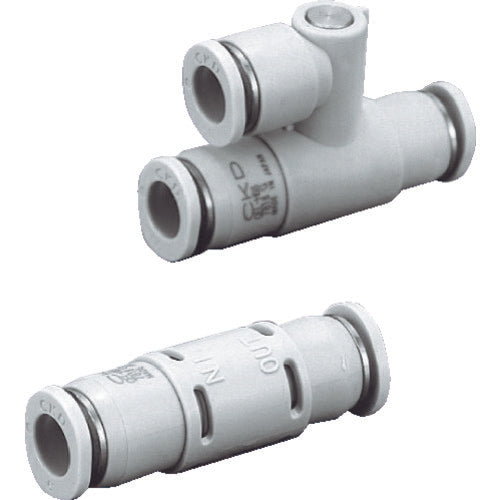

CKD Quick Exhaust Valve with One-Touch Fitting QEL Series Φ6 Exhaust Port Fitting Type QEL-H66 1 pc

Catalog number: QEL-H66 Features: ● Effective in preventing condensation caused by adiabatic expansion. ● Ozone-resistant material is used as standard for the valve body to prevent deterioration. ● An environmentally friendly product whose materials are free of substances that have a negative impact on the global environment. Specifications: ● Effective cross-sectional area (mm2): 4 ● Connection diameter: φ6 one-touch fitting ● Compatible tube outer diameter D (mm): 6 ● Total length (mm): 37.4 ● Operating pressure (MPa): 0.1 to 0.7 ● Operating temperature range (℃): 5 to 60 (but do not freeze) ● Fluid used: Air ● Effective cross-sectional area (mm2) (IN-OUT): 4 ● Effective cross-sectional area (mm2) (OUT-EXH): 4 ● Compact and space-saving Materials/Finish: ● Body: Polybutylene terephthalate ● O-ring: Nitrile rubber
