CKD Pressure Gauge G49D-8-P10 1 piece

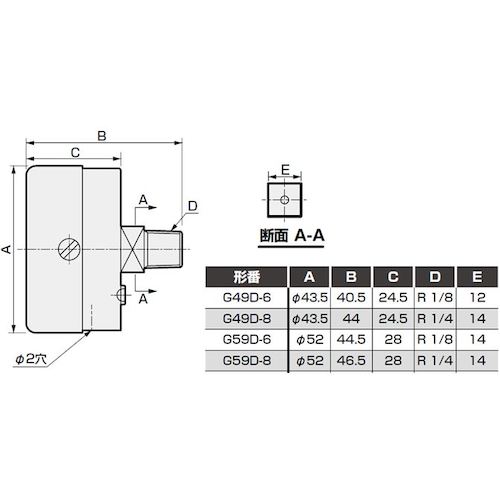

Catalog number: G49D-8-P10 Features: ● General-purpose pressure gauge. Applications: ● For visual management of compressed air pressure. Specifications: ● Pressure range (MPa): 0 to 1.0 ● Minimum scale (MPa): 0.05 ● Shape: DT type (screw on the back, 4-cornered stock) ● Outer diameter (mm): 43.5 ● Measurement fluid: liquid or gas (non-corrosive) ● Accuracy: full scale ±3% ● Connection size: R1/4 ● Fluid used: compressed air ● Fluid temperature: 5 to 60°C ● Outer diameter Φ43.5 ● Accuracy: full scale ±3% ● Fluid used: liquid or gas (non-corrosive) Material/Finish: ● Brass and others
