CKD Outdoor Product W Series Speed ​​Controller Medium Diameter Type SC1-8-W 1 pc

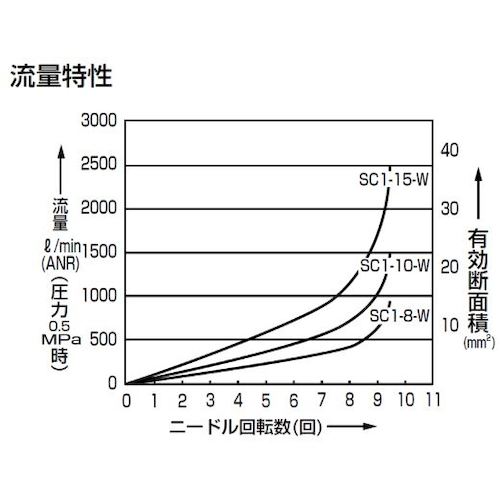

Catalog number: SC1-8-W Features: ●Can be used outdoors. ●Medium-diameter inline speed controller. ●Adjustment knob has anti-slip function. Applications: ●For adjusting the speed of air cylinders. Specifications: Connection port size: Rc1/4 Operating pressure (MPa): 0.05-1.0 Fluid: Compressed air Fluid temperature (℃): 5-60 Pressure resistance (MPa): 1.5 Ambient temperature (℃): -10-60 Applicable cylinder tube inner diameter (mm): 32-75 Fluid: Compressed air Connection type: Inline (threaded) Flow type: Standard flow Free flow rate: 930L/min (effective cross-sectional area: 14mm2) Controlled flow rate: 870L/min (effective cross-sectional area: 13mm2) Reference applicable cylinder tube inner diameter: φ32-φ80mm Needle rotation number: 10 times Meter-in type Material/Finish: Metal parts: Aluminum alloy die-cast, stainless steel, brass Gasket: Fluorine rubber Caution: Fluid temperature/ambient temperature: No freezing. Please note that depending on the air quality (dew point), there is a risk of freezing due to adiabatic expansion. ●The flow rate is the atmospheric pressure equivalent value at a pressure of 0.5 MPa. ●This product is for outdoor use, but please refer to the manufacturer's catalog for information on the usage environment. ●All brass parts are electroless nickel plated.
