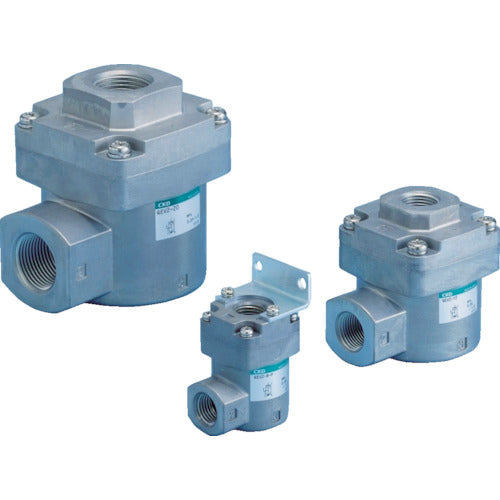

CKD Quick Exhaust Valve QEV2-10 1 piece

Catalogue number: QEV2-10 Features: ● Achieves excellent exhaust characteristics through a large flow rate design. ● Environmentally friendly product (lead-free, hexavalent chromium-free, paint-free) Applications: ● When a large exhaust flow rate is required, such as to increase the cylinder speed. Specifications: ● Effective cross-sectional area (mm2): Port position 1 → 2: 90, port position 2 → 3: 100 ● Connection size: Port positions 1 and 2 Rc3/8, port position 3 Rc1/2 ● Operating pressure (MPa): 0.05 to 1.0 ● Height (mm): 63 ● Fluid temperature (℃): 5 to 60 ● Fluid temperature: 5 to 60℃ ● Operating pressure range: 0.05 to 1MPa Materials/Finish: ● Body, plug: Aluminum die-cast ● O-ring: Nitrile rubber ● Valve: Hydrogenated nitrile rubber
