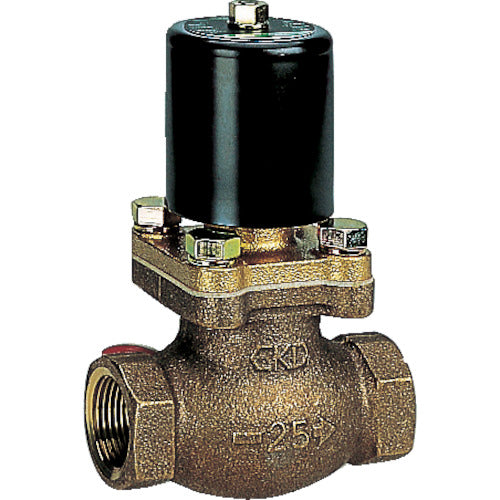

Catalog number: PKW-10-27-AC200V Features: ● Solenoid valve for general fluids (for water). ● A wide range of models are available in terms of fluid, pressure, and caliber. Specifications: ● Connection caliber: Rc1 ● Operation method: Electric ● Power supply (V): AC200 ● Number of ports: 2 ● Fluid used: Water ● Fluid temperature (℃): 5 to 60 ● Cv value: 12 ● Orifice (mm [squared]): 25 ● Operating pressure difference (MPa): 0 to 0.7 ● Fluid temperature: 5 to 60℃ ● Operating pressure: 0 to 0.7MPa
