CKD Direct acting 2-port solenoid valve (Multi-rex valve) AB41-02-3-AC100V 1 unit

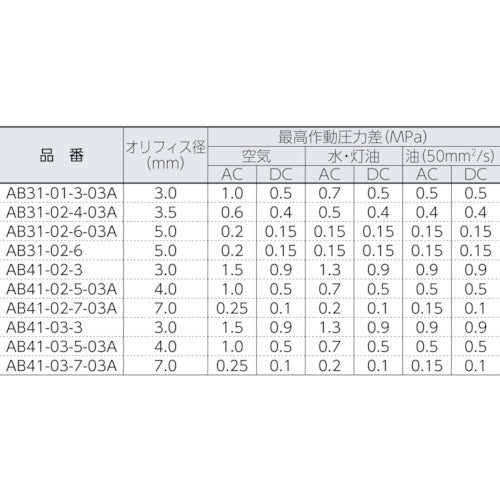

Catalog number: AB41-02-3-AC100V Features: ●Multi-lex valve series that controls many types of fluids, including water, air, vacuum, and oil. Uses: ● For ON/OFF control of many types of fluids, including water, air, vacuum, and oil. Specifications: ● Effective cross-sectional area (mm2): 5.5 ● Connection diameter: Rc1/4 ● Operation method: Direct-acting poppet structure ● Power supply (V): AC100 ● Number of ports: 2 ● Fluids used: air, low vacuum, water, kerosene (up to 60°C), etc. ● Fluid temperature (°C): -10 to 60 ● Sonic conductance (C [dm3/(S·bar)]): 1.1 ● Maximum operating pressure difference (MPa) air: 1.5 ● Maximum operating pressure difference (MPa) water: 1.3 ● Operating pressure difference (MPa): 0 to 1.5 (air), 0 to 1.3 (water, kerosene), 0 to 0.9 (oil) ● Direct-acting, NC (closed when energized) type ● Lead wire: 300 mm Material/Finish: ● Body: Brass ● Sealing material: Nitrile rubber
