CKD Direct acting 3-port solenoid valve (Multi-rex valve) AG31-02-2-03A-DC24V 1 unit

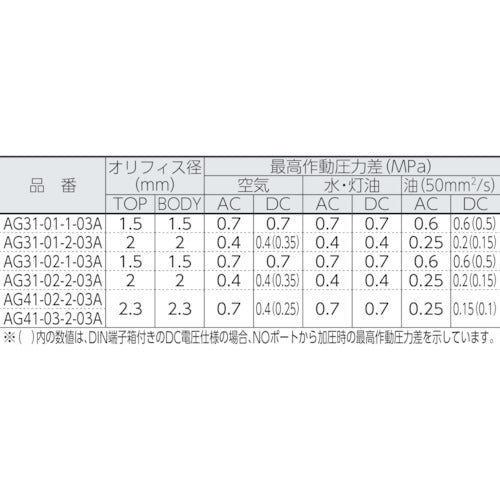

Catalog number: AG31-02-2-03A-DC24V Features: ●Multi-lex valve series that controls many types of fluids, including water, air, vacuum, and oil. Uses: ● For three-way control of many types of fluids, including water, air, gas, and oil. Specifications: ● Effective cross-sectional area (mm2): 2.65 ● Connection diameter: Rc1/4 ● Operation method: Direct-acting poppet structure ● Power supply (V): DC24 ● Number of ports: 3 ● Fluids used: air, low vacuum, water, kerosene (up to 60°C), etc. ● Fluid temperature (°C): -10 to 60 (no freezing) ● Maximum operating pressure difference (MPa) air: 0.4 ● Maximum operating pressure difference (MPa) water: 0.4 ● Operating pressure difference (MPa): 0 to 0.4 (air, water, kerosene), 0 to 0.2 (oil) ● Direct-acting, universal type ● Fluids used: air, low vacuum, water, kerosene, oil, etc. ● Fluid temperature: -10 to 60°C (no freezing) ● Open frame type lead wire (equivalent to IP65): 300mm Material/Finish: ● Body: Brass ● Sealing material: Nitrile rubber
