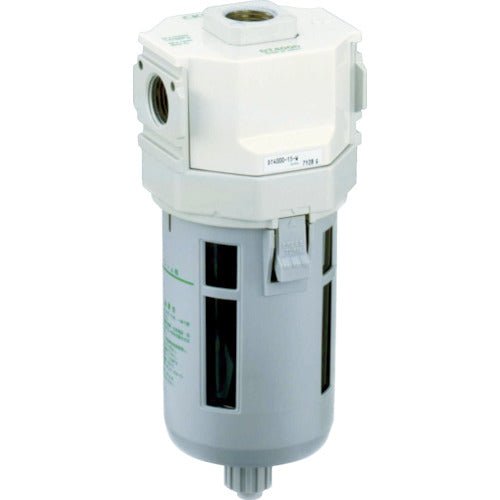

CKD Automatic drain discharger Snap drain DT4000-15-W 1 piece

Catalog number: DT4000-15-W Features: ●A new type of drain discharger that is lightweight and compact, and achieves long life and high reliability by adopting a new snap mechanism. ●Connection ports are available in two directions, top and side, so you can connect according to your needs. ●Two types are available: normally open (DT3000, DT4000) and normally closed (DT3010, DT4010) depending on your needs. ●Equipped with a fitting for drain piping. ●A manual cock is standard equipment. ●Optional nylon bowl and metal bowl are available for the bowl assembly material depending on the usage environment. Uses: ●Used to automatically discharge drainage accumulated in the tank or air piping of an air compressor when a certain amount is reached. Specifications: ● Operating pressure (MPa): 0.10-1.0 ● Drain discharge amount (cm3/time): 30 ● Connection diameter: Rc1/2 ● Width (mm): 80 ● Depth (mm): 79 ● Height (mm): 201 ● Drain discharge method: Normally open type auto drain ● Operating fluid: Drain in air (water or oil)/Guaranteed pressure resistance: 1.5MPa ● Fluid temperature (℃): 5-60 ● Type: NO ● Fluid temperature: 5-60℃ ● Drain discharge method: Snap mechanism ● Operating pressure range: NO-0.1-1MPa/NC-0.15-1MPa ● Drain discharge port: Bamboo shoot nipple (connect nylon tube with inner diameter φ5.7-6) Caution: ● If the compressor used is less than 0.75KW and a small flow rate is used, select the normally closed type.
