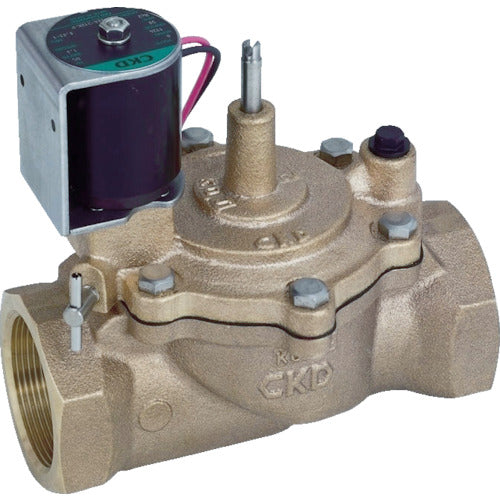

CKD Automatic watering control device Solenoid valve RSV-50A-210K-P 1 unit

Catalog number: RSV-50A-210K-P Features: ● Molded coil with excellent weather resistance and water resistance. ● Equipped with flow rate adjustment and manual operation mechanism. Specifications: ● Type: Latch pulse signal type ● Summary: Controller: RSC-S5, RSC-G, RSC-1WP, RSC-2WP ● Compatible hose inner diameter (mm): 50A ● Compatible hose outer diameter (mm): 0.03 to 1.0 ● Connection size: 50A ● Operating pressure (MPa): 0.03 to 1.0 ● Cv value: 46.5 ● Operating temperature range (℃): 0 to 60 ● Power supply: DC6V ● Maximum operating frequency: 1 time/min ● Fluid temperature: 5 to 60℃
