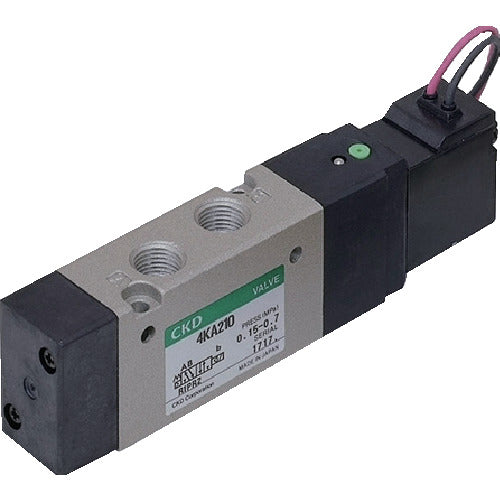

CKD 4K Series Pilot Type 5-Port Select Valve 4KA110-M5-DC24V 1 Unit
CKD 4K Series Pilot Type 5-Port Select Valve 4KA110-M5-DC24V 1 Unit
Regular price
¥7,405
Regular price
Sale price
¥7,405
Unit price
/
per
Shipping calculated at checkout.
Couldn't load pickup availability

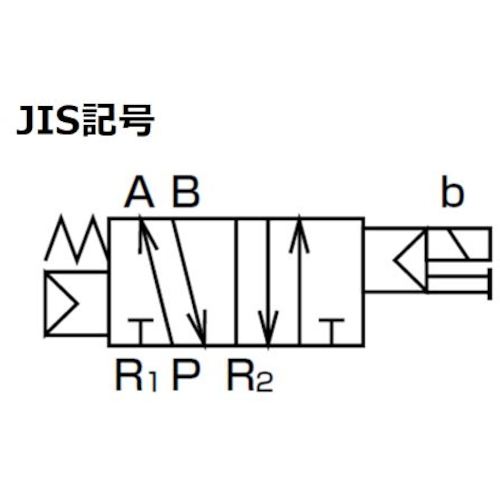

Catalog number: 4KA110-M5-DC24V Features: ● Single solenoid type 5-port valve. ● Direct piping. ● Improved wear resistance and sliding performance of the sliding parts have significantly increased the life span and stabilized responsiveness. Applications: ● For driving cylinders of Φ20 to Φ40 Specifications: ● Connection size: M5 ● Power supply (V): DC24 ● Fluid used: Compressed air ● Fluid temperature (℃): 5 to 50 ● Sonic conductance (C [dm3/(S・bar)]): 0.65 ● Fluid used: Compressed air ● Operating pressure: 0.15 to 0.7 MPa ● Fluid temperature: 5 to 50℃ ● Wire connection: Grommet lead wire 300 mm Materials/Finish: ● Body: Aluminum die-cast, Spool packing: Nitrile rubber
