CKD 4K Series Pilot Type 5-Port Select Valve 4KA120-M5-AC100V 1 Unit

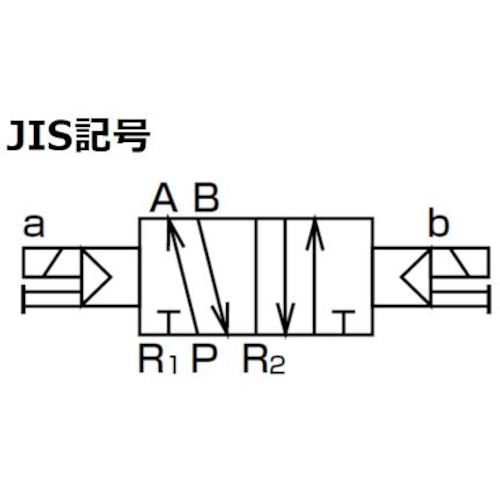

Catalog number: 4KA120-M5-AC100V Features: ●Double solenoid type 5-port valve. ●Direct piping. ●Improved wear resistance and sliding performance of the sliding parts have resulted in a significant increase in life span and stable responsiveness. Uses: ●For driving cylinders of Φ20 to Φ40 Specifications: ●Effective cross-sectional area (mm2): 3.25 ●Connection diameter: M5 ●Operation method: Pilot-operated soft spool valve ●Power supply (V): AC100 ●Number of ports: 5 ●Operating pressure (MPa): 0.15 to 0.7 ●Operating fluid: Compressed air ●Fluid temperature (℃): 5 to 50 ●Sonic conductance (C [dm3/(S・bar)]): 0.65 ●Operating fluid: Compressed air ●Fluid temperature: 5 to 50℃ ●Operating pressure: 0.1 to 0.7MPa (0.15 to 0.7MPa for 4KA1 series only) ●Wire connection: Grommet lead wire 300mm Materials/Finish: ●Body: Aluminum die-cast, spool packing: Nitrile rubber
