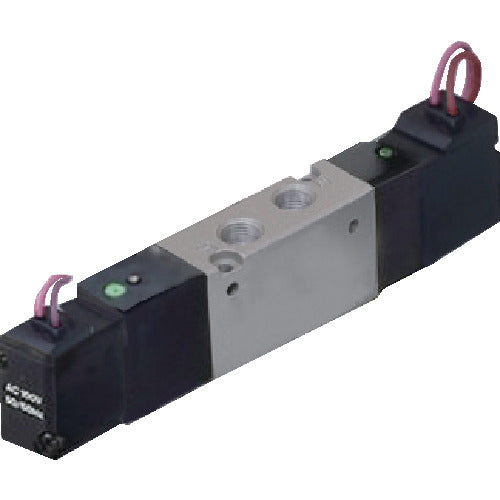

CKD 4K Series Pilot Type 5-Port Select Valve 4KA420-10-AC200V 1 Unit

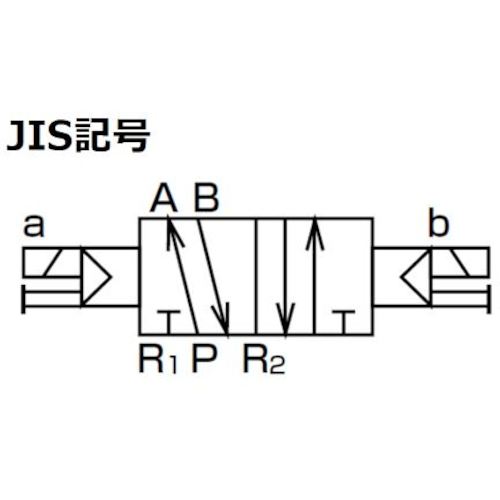

Catalog number: 4KA420-10-AC200V Features: ●Double solenoid type 5-port valve. ●Direct piping. ●Improved wear resistance and sliding performance of the sliding parts have resulted in a significant increase in life span and stable responsiveness. Uses: ●For driving cylinders with diameters of Φ125 to Φ160 Specifications: ●Effective cross-sectional area (mm2): 49 ●Connection diameter: Rc3/8 ●Operating method: Pilot-operated soft spool valve ●Power supply (V): AC200 ●Number of ports: 5 ●Operating pressure (MPa): 0.1 to 0.7 ●Operating fluid: Compressed air ●Fluid temperature (℃): 5 to 50 ●Sonic conductance (C [dm3/(S・bar)]): 9.8 ●Operating pressure: 0.1 to 0.7MPa (0.15 to 0.7MPa for 4KA1 series only) ●Wire connection (mm): Grommet lead wire 300 Materials/Finish: ●Body: Aluminum die-cast, Spool packing: Nitrile rubber
