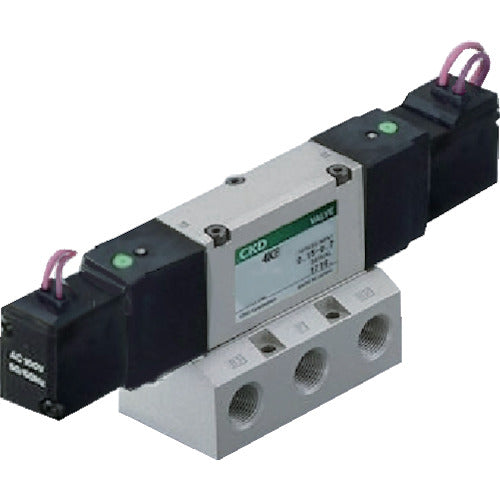

CKD 4K Series Pilot Type 5 Port Valve Select Valve 4KB120-06-AC100V 1 Unit

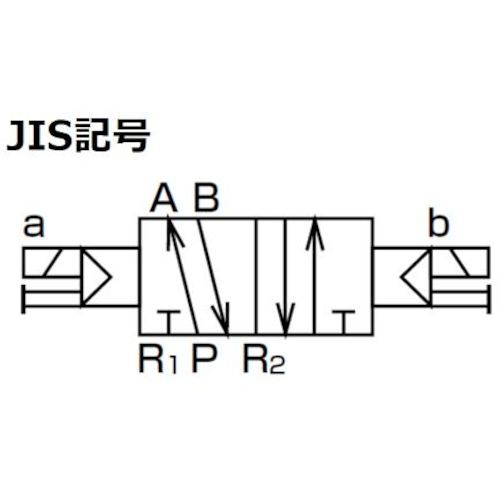

Catalog number: 4KB120-06-AC100V Features: ●Double solenoid type 5-port valve. ●Subplate piping. ●Improved wear resistance and sliding performance of the sliding parts have significantly increased the life span and stabilized responsiveness. Applications: ●For driving cylinders of Φ20 to Φ40 Specifications: ●Effective cross-sectional area (mm2): 4.45 ●Connection port size: Rc1/8 ●Operation method: Pilot-operated soft spool valve ●Power supply (V): AC100 ●Number of ports: 5 ●Operating pressure (MPa): 0.15 to 0.7 ●Operating fluid: Compressed air ●Fluid temperature (℃): 5 to 50 ●Sonic conductance (C [dm3/(S・bar)]): 0.89 ●Wire connection: Grommet lead wire 300 mm Materials/Finish: ●Body: Aluminum die-cast, Spool packing: Nitrile rubber
