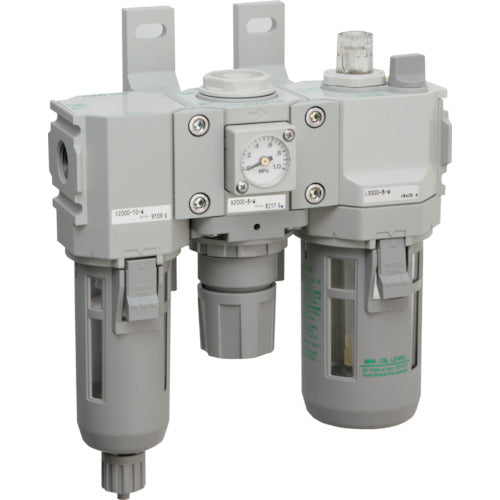

CKD FRL unit F.R.L combination connection size 3/8 C2500-10-WF 1 S

Catalog number: C2500-10-WF Features: ●Space-saving type that integrates a filter, regulator, and lubricator. ●The pressure gauge is embedded in the body, giving it a sleek design while ensuring safety. ●In the event of partial damage, it can be fixed by simply replacing the affected part. ●The element used has a unique chemical fiber structure that has a rough surface and becomes finer toward the inside. It greatly reduces clogging and significantly increases the element lifespan. Specifications: Filtration accuracy (μm): 5 Operating pressure (MPa): 1 Air flow rate (m3/min): 1.7 Connection diameter: Rc3/8 Oil storage capacity (cm3): 85 Overall length (mm): 202 Overall width (mm): 176 Set pressure (MPa): 0.05-0.85 Drain discharge method: Auto drain Fluid used: Air Fluid temperature (℃): 5-60 Drain discharge method: Auto drain Oil used: Turbine oil type 1 (equivalent to ISO VG#32) Pressure gauge, bracket included Note: For the C2500-8000-WF series, the minimum operating pressure of the auto drain is 0.1MPa. Air is purged along with the initial drain until it rises to 0.1MPa.
