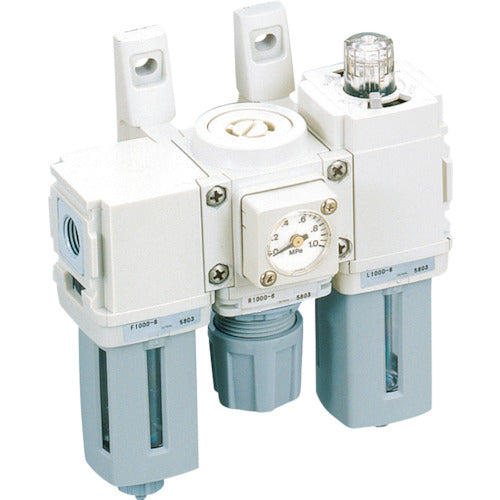

CKD FRL unit F.R.L combination White series Connection size Rc1/8 C1000-6-W-F1 1 S

Catalog number: C1000-6-W-F1 Features: ●Space-saving type that integrates a filter, regulator, and lubricator. ●The pressure gauge is embedded in the body, giving it a sleek design while ensuring safety. ●In the event of partial damage, it can be fixed by simply replacing the affected part. ●The element used has a unique chemical fiber structure that has a rough surface and becomes finer toward the inside. It greatly reduces clogging and significantly increases the element's lifespan. Specifications: Filtration accuracy (μm): 5 Operating pressure (MPa): 1 Air flow rate (m3/min): 0.45 Connection port size: Rc1/8 Oil storage capacity (cm3): 20 Overall length (mm): 143 Overall width (mm): 120 Set pressure (MPa): 0.05-0.85 Drain discharge method: Auto drain Fluid used: Air Fluid temperature (℃): 5-60 Drain discharge method: Auto drain Oil used: Turbine oil type 1 (equivalent to ISO VG#32) Pressure gauge, bracket included Note: For the C1000-W-F1 series, the minimum operating pressure of the auto drain is 0.2MPa, and the maximum operating pressure is 0.7MPa. For the C2000-8000-W-F1 series, the minimum operating pressure of the auto drain is 0.15MPa.
