CKD F.R.L Combination C2500-8-W 1 S

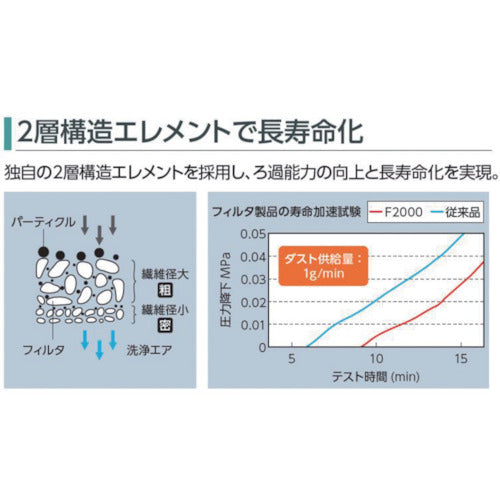

Catalog number: C2500-8-W Features: ●Space-saving type that integrates a filter, regulator, and lubricator. ●The pressure gauge is embedded in the body, giving it a sleek design while ensuring safety. ●In the event of partial damage, it can be fixed by simply replacing the affected part. ●The element used has a unique chemical fiber structure that has a rough surface and becomes finer toward the inside. It greatly reduces clogging and significantly increases the element lifespan. Specifications: ● Filtration accuracy (μm): 5 ● Operating pressure (MPa): 1 ● Processed air flow rate (m3/min): 1.2 ● Connection diameter: Rc1/4 ● Oil storage capacity (cm3): 85 ● Overall length (mm): 203 ● Overall width (mm): 176 ● Set pressure (MPa): 0.05-0.85 ● Fluid temperature (℃): 5-60 ● Fluid temperature: 5-60℃ ● Drain discharge method: Manual ● Oil used: Type 1 turbine oil (equivalent to ISO VG#32) ● Pressure gauge and bracket included
