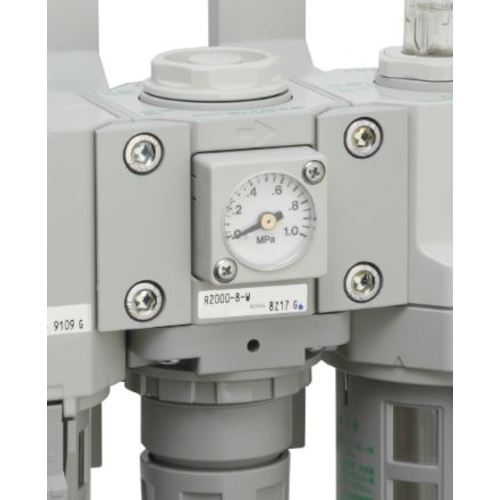

CKD F.R.L Unit 2000-8000 Series Pressure Gauge Assembly G401-W-P04 1 pc

Catalog number: G401-W-P04 Features: ● Thin and compact design ideal for built-in equipment. ● Ideal for filter regulators and regulators (2000 to 8000 series) and pressure switches (P4000-W). ● Standard equipment on FRL units 2000 to 8000 series. Applications: ● For visual management of compressed air pressure. Specifications: Pressure range (MPa): 0-0.4 Minimum scale (MPa): 0.02 Shape: Square, screw-fastened Outer diameter (mm): □27 Measurement fluid: Compressed air Precision: Full scale ±3% Fluid used: Compressed air Fluid temperature, ambient temperature: 5-60°C Connection method: O-ring seal, screw-fastened Length x width x height: 27 x 27 x 15.5 mm Precision: Full scale ±3% Display diameter: Φ20 Material/Finish: Housing: PBT resin Lens: Polycarbonate resin Set contents/Accessories: O-ring (1 piece), pressure gauge (1 piece), mounting screws (2 pieces)
