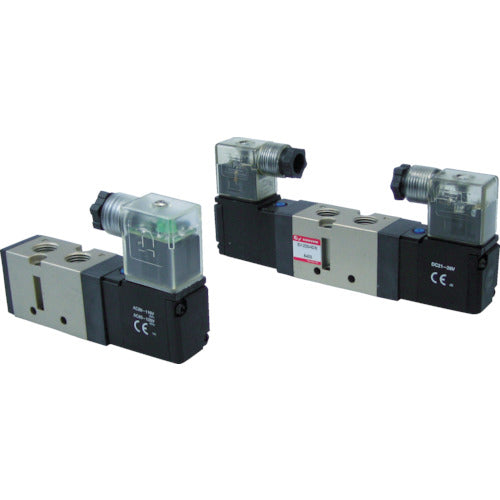

Catalog number: CSV210-4DS Features: ● Single solenoid type. ● Width: 18 mm (CSV110), 26 mm (CSV210). ● Low power consumption: 1.7/1.8 W (DC). Specifications: ● Effective cross-sectional area (mm2): 18 ● Connection port size: Rc1/4 ● Power supply (V): DC24 ● Fluid used: Unlubricated air ● Fluid temperature (℃): -5 to 50 (no freezing) ● Direct piping type ● Operating pressure: 0.15 to 0.7 MPa ● Single solenoid type ● Connection method: DIN type
