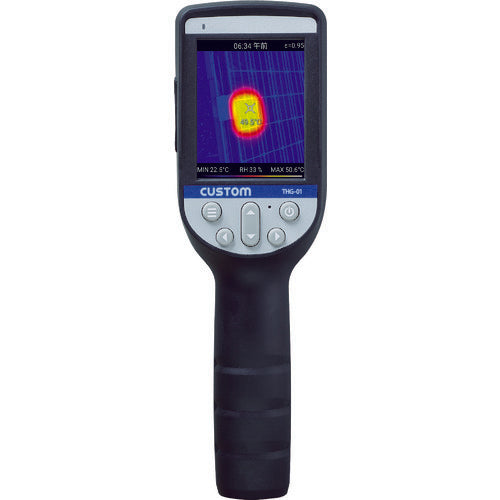

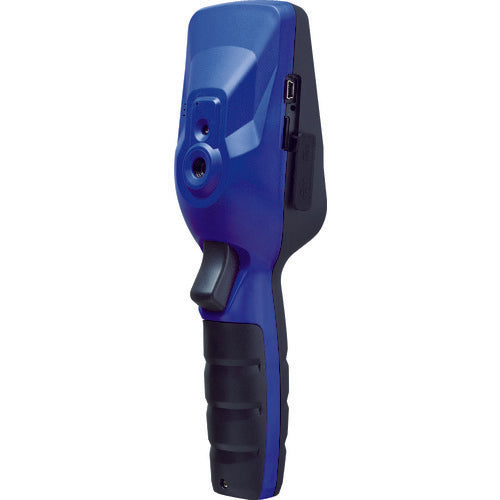

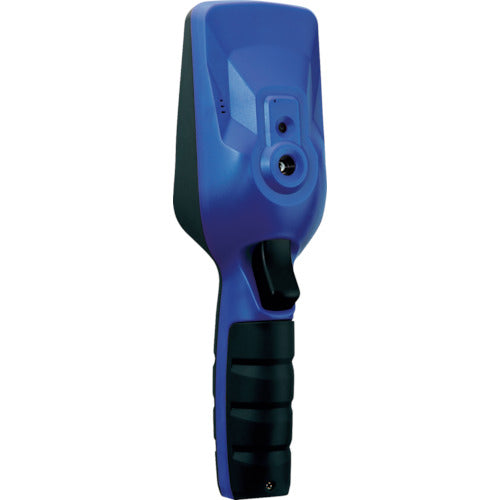

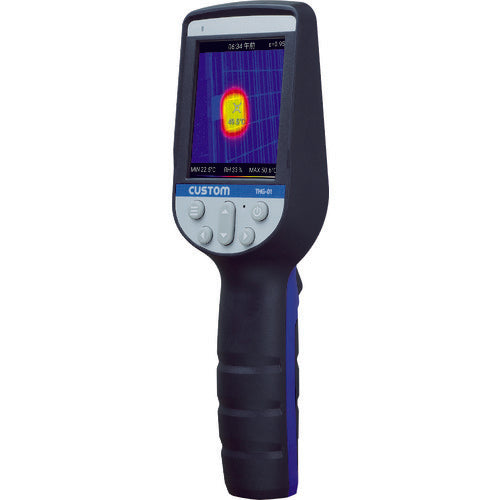

CUSTOM Thermography "Thermo Capture" THG-01 1 piece

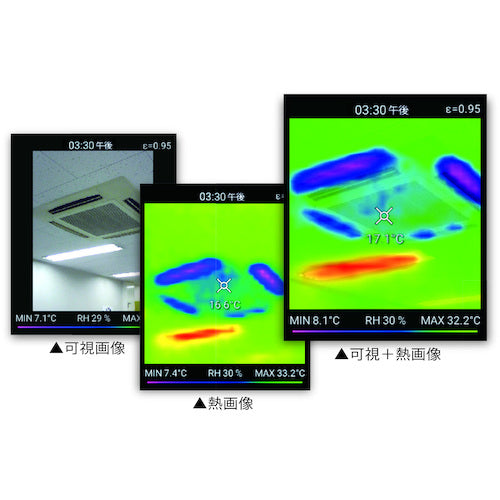

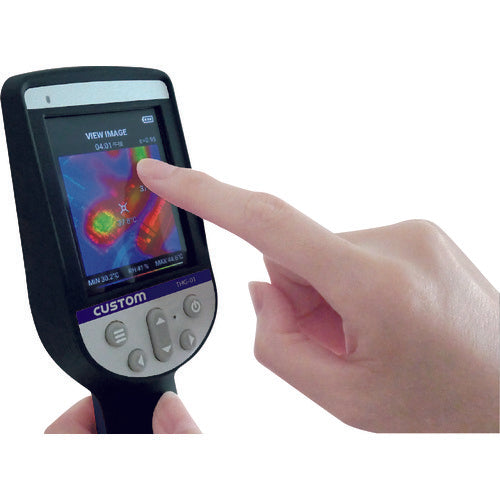

Catalog number: THG-01 Features: ●Since all pixels displayed on the screen (32 x 32 = 1024 pixels) contain temperature information, you can check the temperature by touching the area of ​​interest. ●Temperature information is also saved with the saved still image, so you can check it later. ●Thermal images and visible images can be displayed overlaid, making it easy to see where the temperature is rising and you will never lose track of what was photographed. ●Can also be saved to a micro SD card (sold separately). Applications: ●For inspection of electrical equipment and facilities, building diagnosis, research and development, etc. ●For checking temperature distribution. Specifications: ● Measurement temperature range (℃): -20 to +380 ● Minimum temperature display (℃): 0.1 ● Measurement viewing angle (°): 33 ● Operating temperature range (℃): -20 to +380 ● Width (mm): 66 ● Depth (mm): 48 ● Height (mm): 215 ● Power supply (V): Lithium-ion rechargeable battery (built-in) ● Power supply: Lithium-ion rechargeable battery (built-in) ● Number of pixels (pixels): 0.2M ● Resolution: 32 x 32 pixels ● Humidity measurement range: 0 to 80% RH ● Focus: Fixed ● Minimum focal length: 0.1m ● Measurement wavelength: 8 to 11.5μm ● Display: 2.8-inch color LCD, touch panel ● Emissivity correction: 0.01 to 1.00 (variable) ● Built-in memory (up to 10,000 sheets) / External (microSD card up to 64GB, sold separately) Set contents / accessories: ● USB cable, carrying case Note: Charging: Charge from an AC adapter with a USB port, a mobile battery, a PC, etc. These are not included with the product.
