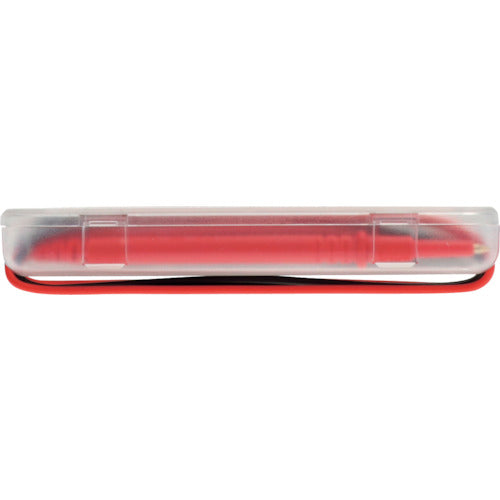

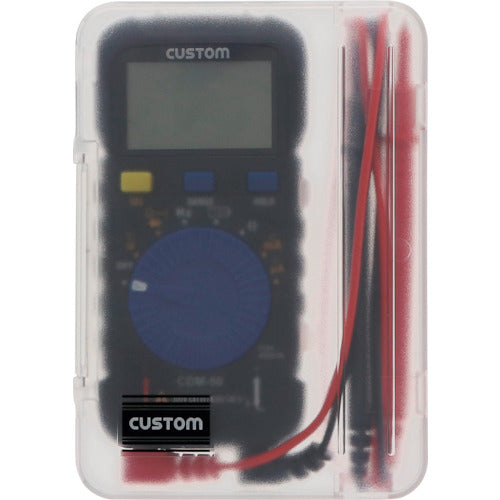

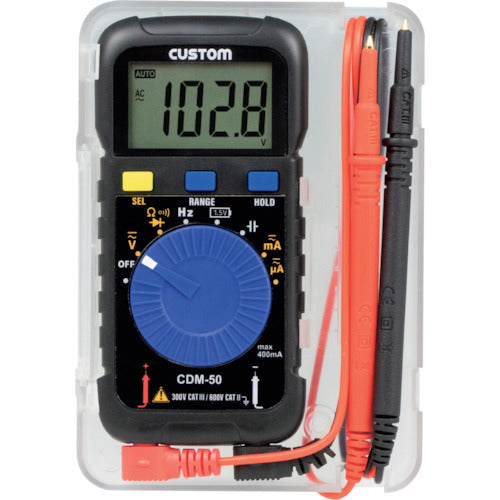

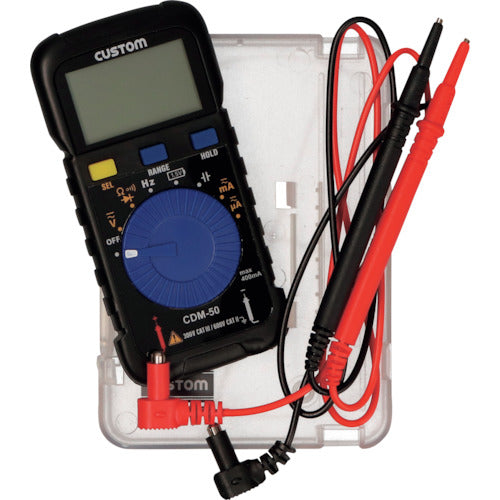

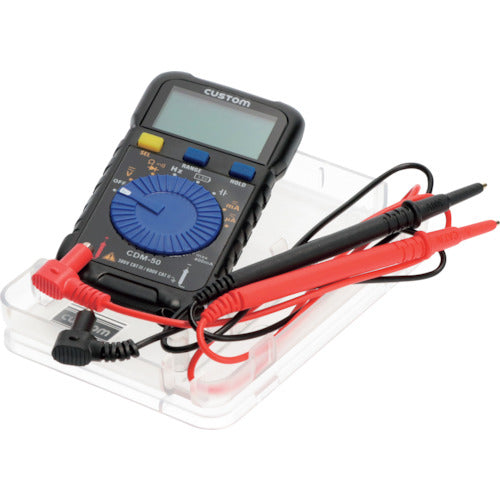

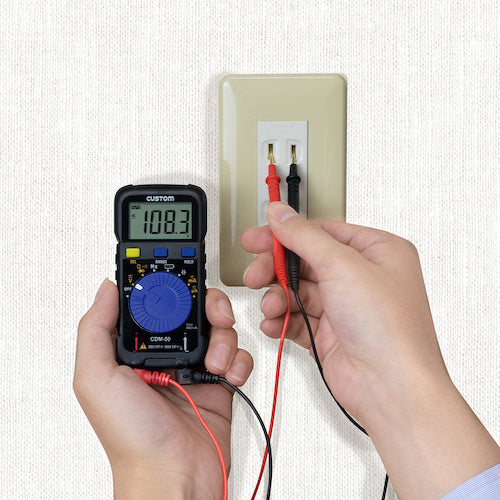

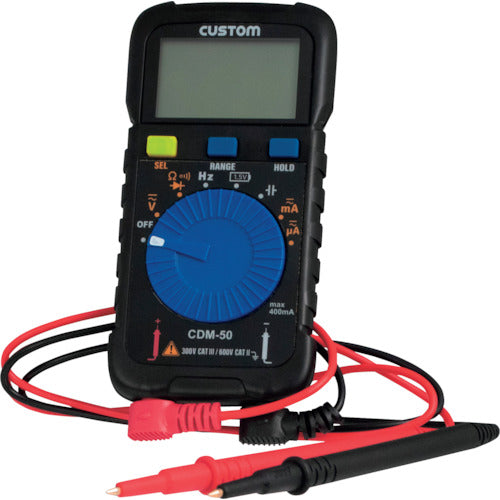

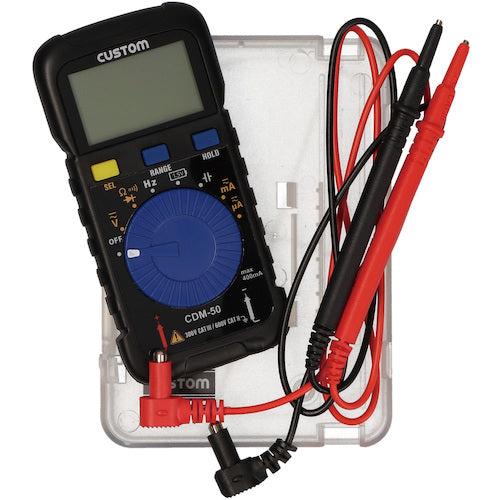

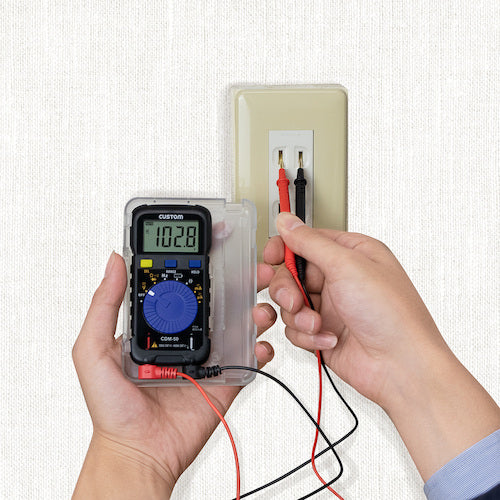

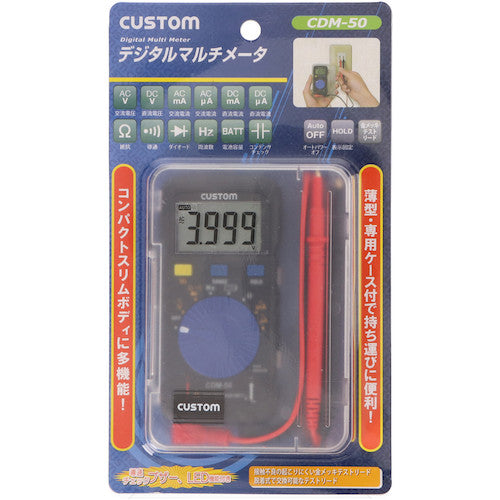

Catalog number: CDM-50 Features: ●A multi-function digital multimeter with a compact, slim body that has voltage (DC, AC), current (DC, AC), resistance, frequency, capacitance, continuity check function (buzzer, LED), diode, and 1.5V dry cell voltage check function. ●The test leads are removable and replaceable, and the probe tips are gold-plated. ●Stored in a dedicated outer case. ●The product body can be removed from the case. ●A dedicated storage space is provided to prevent the probe cap from being lost. ●Equipped with auto power off and data hold functions. ●The buzzer and LED light up when checking continuity. Applications: ●For checking current and voltage at factory sites. ●For checking electrical characteristics in electrical work. ●For checking technical training at schools (educational sites). Specifications: ● DC voltage (V): 600 ● AC voltage (V): 600 ● Resistance (Ω): 40M ● DC current (mA): 400 ● Detection method: Average value method ● Power supply (V): 1 lithium battery (CR2032) ● Functions: DCV, ACV, DCA, ACA, Ω, frequency, capacitance, diode check, data hold, continuity check (buzzer, LED), 1.5V dry battery voltage check ● DCV: Range 4V/40V/400V/600V, Resolution 0.001V/0.01V/0.1V/1V, Accuracy ±(1.0%+3dgt), Notes Input impedance 10MΩ or more ● ACV: Range 4V/40V/400V/600V, Resolution 0.001V/0.01V/0.1V/1V, Accuracy ±(2.0%+5dgt), Remarks Input impedance 10MΩ or more, ・40Hz to 400Hz●DCA: Range 400uA/40mA/400mA, Resolution 0.1uA/0.01mA/0.1mA, Accuracy ±(2.0%+5dgt), Remarks Up to 400mA●ACA: Range 400uA/40mA/400mA, Resolution 0.1uA/0.01mA/0.1mA, Accuracy ±(2.0%+5dgt), Remarks Up to 400mA, ・50Hz to 60Hz●Ω: Range 400Ω/4kΩ/40kΩ/400kΩ/4MΩ/40MΩ, Resolution 0.1Ω/0.001kΩ/0.01kΩ/0.1kΩ/0.001MΩ/0.01MΩ, Accuracy ±(2.0%+5dgt)●Frequency: Range 5Hz/50Hz/500Hz/5kHz/50kHz/100kHz, Resolution 0.001Hz/0.01Hz/0.1Hz/0.001kHz/0.01kHz/0.1kHz, Accuracy ±(0.5%+5dgt), Remarks 1Hz to 100kHz, 500mVrms or more, Sine wave, 50% square wave●Capacitance: Range 50nF/500nF/5uF/50uF/100uF, Resolution 0.01nF/0.1nF/0.001uF/0.01uF/0.1uF, Accuracy ±(5.0%+5dgt), Remarks 10nF to 100uF●Detection method: Average value method●Display: 3999 counts Set contents/accessories: ●Instruction manual (with warranty), test leads, storage case Note: ●Accuracy guarantee for AC voltage, AC current, and frequency is limited to sine waves.
