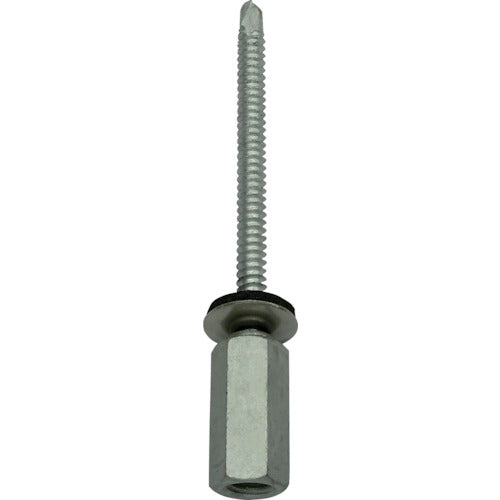

DAIDOHANT Drill Hanger (C-beam/H-beam [up to 3.2 mm]) (nominal) M6.3 x (length) 77 mm 10177051 1 pc

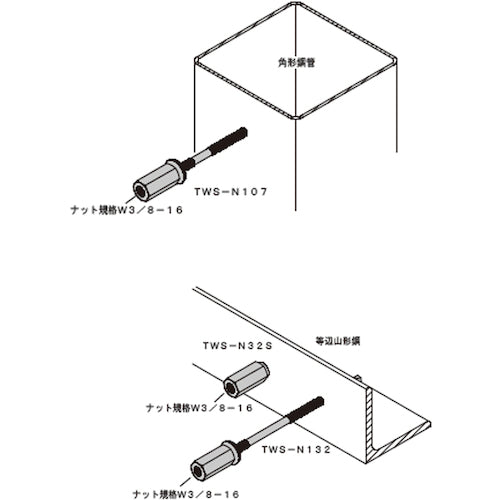

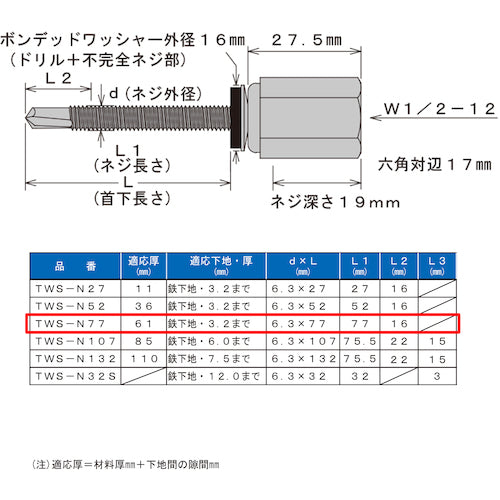

Catalog number: 10177051 Features: ● W3/8 (3 minutes) nuts are fixed, and W3/8 (3 minutes) bolts and cut bolts can be easily attached. ● The washer part is made of neoprene, which is highly resistant to weather and chemicals. Uses: ● For fixing steel substrates (C-shaped steel, deck plates, H-shaped steel, etc.), gutters, downspouts, water pipes, drainage pipes, etc., and for connecting shuttlecock bolts. Specifications: ● Wire diameter (mm): 6.3 ● Length (mm): 77 ● Suitable substrate (mm): up to 3.2 mm steel substrate Material/Finish: ● Iron ● Surface treatment: Ruspart Note: ● We cannot determine the allowable load. ● Please take into consideration that the maximum tensile strength listed will vary greatly depending on the quality of the construction. ● In addition, the maximum tensile strength cannot be guaranteed if the pilot hole is drilled with a separate tool.
