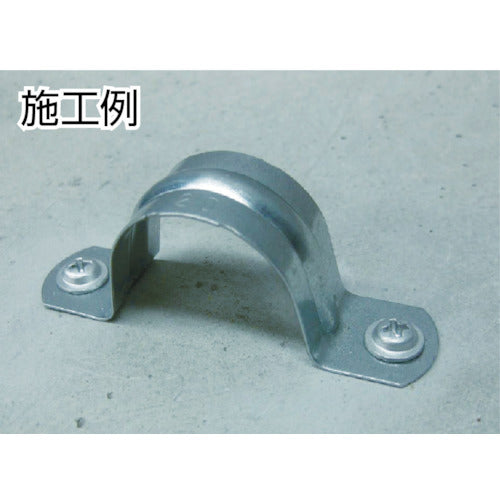

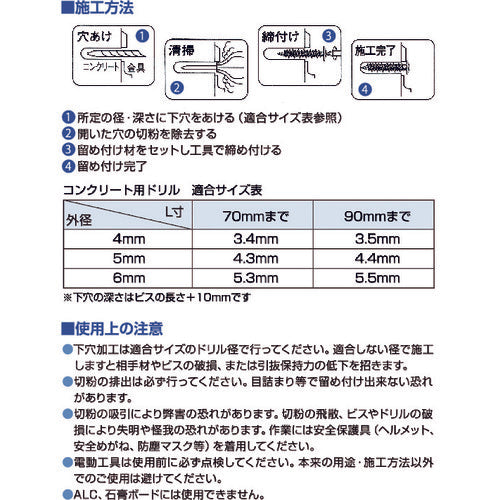

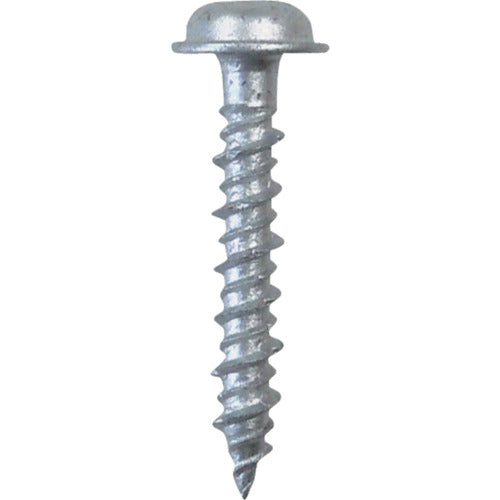

Catalog number: 00048316 Features: ●Can be used in concrete with pilot holes only, without using plugs. Applications: ●For fastening switch boxes, saddles, etc. to concrete, mortar, blocks, and bricks. Specifications: ●Nominal diameter d (mm): 4 ●Pilot hole diameter (mm): 3.4 ●Embedding depth (mm): 27 ●Maximum tensile load (kN): 2.25 ●Drilling depth (mm): 40-t ●Length (mm): 32 ●Head diameter (mm): 9.0 ●Head height (mm): 3.0 Material/Finish: ●Steel ●Surface treatment: Ruspart treatment Note: ●Maximum tensile load is the value when the concrete strength is Fc 40.8 N/m [M2]. ●Drilling depth is the value of total length + 10 mm-t (thickness of the object to be attached).
