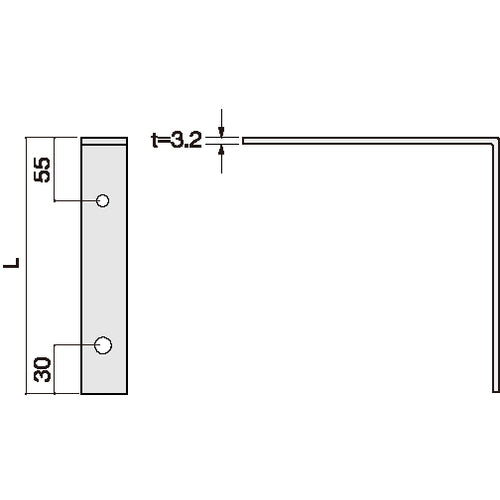

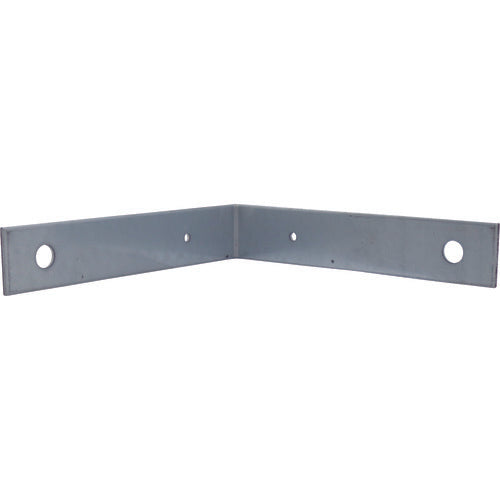

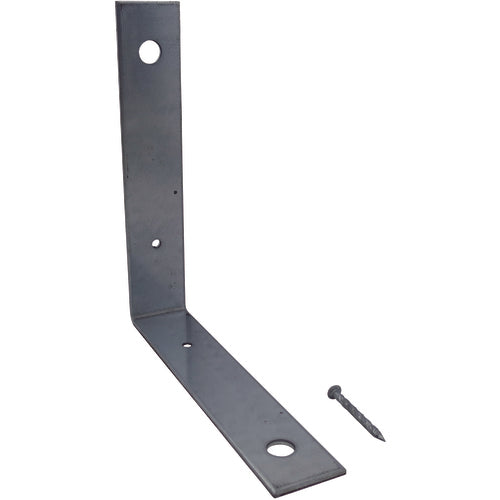

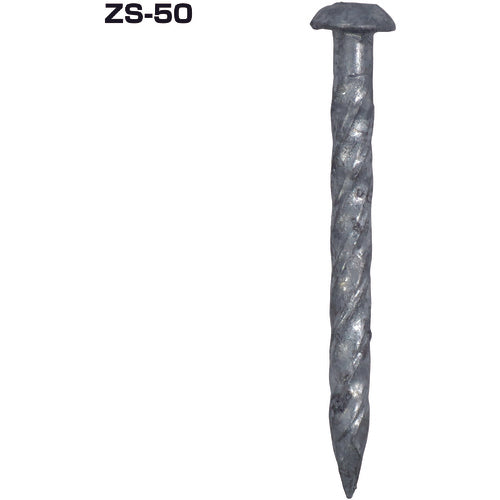

Catalogue number: 10177144 Features: ●Z-marked hardware used for connecting through columns and girths. Uses: ●For reinforcing the joints between corner through columns and girths. Specifications: ●Thickness (mm): 3.2 ●Thickness x Length (mm): 3.2 x 270 ●Plate thickness (mm): 3.2 ●Length L (mm): 270 ●Size Length (mm): 270 Material/Finish: ●JIS G 3302 (Hot-dip galvanized steel sheet and steel strip) SGHC or equivalent ●Surface treatment: Hot-dip galvanized steel sheet Z27 Set contents/Accessories: ●Z screw nail ZS-50 2 pieces/each
