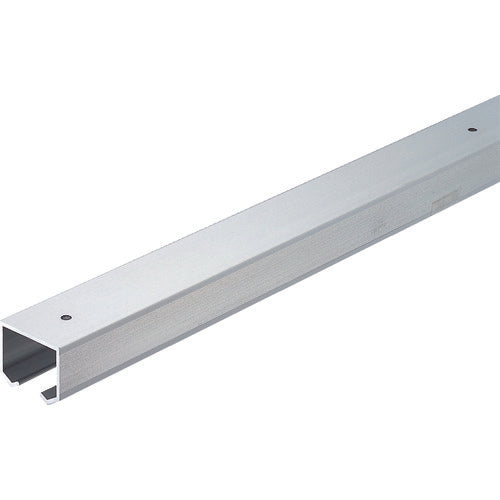

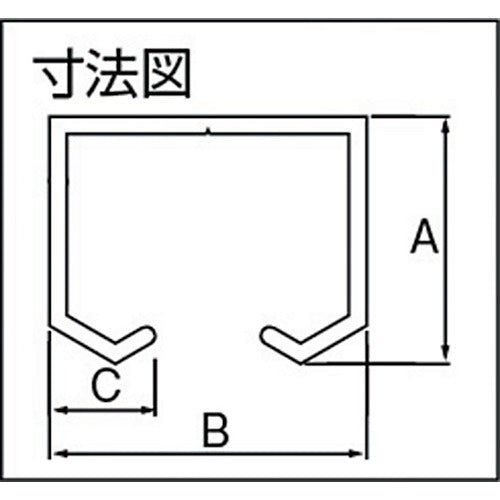

Catalog number: 10A-R18S Use: ● As a track for a hoist cart to run on the inside. ● For indoor use. Specifications: ● Total length (mm): 1820 ● Plate thickness (mm): 2 ● A (mm): 28 ● B (mm): 36 ● C (mm): 12 ● Hole diameter (mm): 4.5 Material/Finish: ● Aluminum (A6063S-T5) anodized silver Set contents/Accessories: ● Mounting truss tapping screw nominal diameter 4 x 25 Note: ● The load capacity is the value when installed at a 300 mm pitch.
