DAIKEN Door Hanger Newton 10 Curved Rail 600R N10-HR600R 1 piece

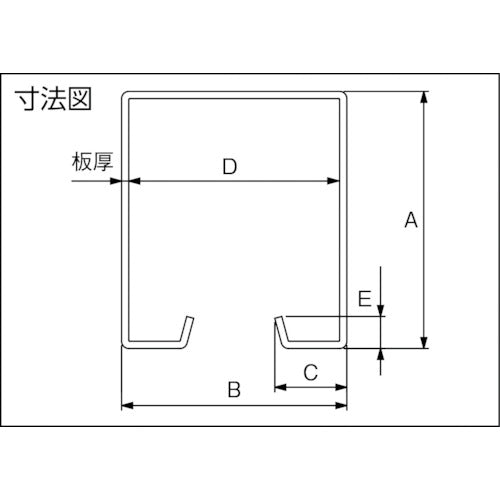

Catalogue number: N10-HR600R Features: ●The cross-sectional shape is the same as a straight hanger rail. Applications: ●Curved track rail for hoisting cars Specifications: ●Load capacity (kg): 50 ●Total length (mm): 974 ●Plate thickness (mm): 1.2 ●A (mm): 45 ●B (mm): 40 ●C (mm): 12 ●D (mm): 37.6 ●E (mm): 7 ●Finish: Powder coating ●Standard R: R600mm (1/4 circle) ●Fixed pitch: 450-500mm ●For Newton series only Material/Finish: ●Steel (SGC400) Note: ●Direct mounting to the rail is not possible.
