DAIKEN Door Hanger Newton 40 Curved Rail 600R N40-HR600R 1 piece

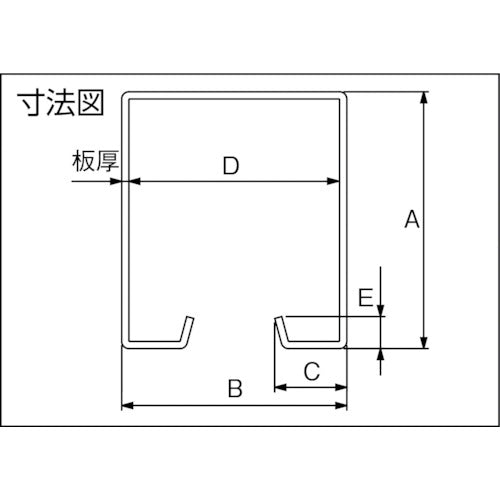

Catalogue number: N40-HR600R Features: ●The cross-sectional shape is the same as a straight hanger rail. Applications: ●Curved track rail for hoisting cars Specifications: ●Load capacity (kg): 200 ●Total length (mm): 981 ●Plate thickness (mm): 2 ●A (mm): 57 ●B (mm): 50 ●C (mm): 16 ●D (mm): 46 ●E (mm): 7 ●Finish: Powder coating ●Standard R: R600 (1/4 circle) ●Fixed pitch: 450-500mm ●For Newton series only Material/Finish: ●Steel (SGH) Note: ●Direct mounting to the rail is not possible.
