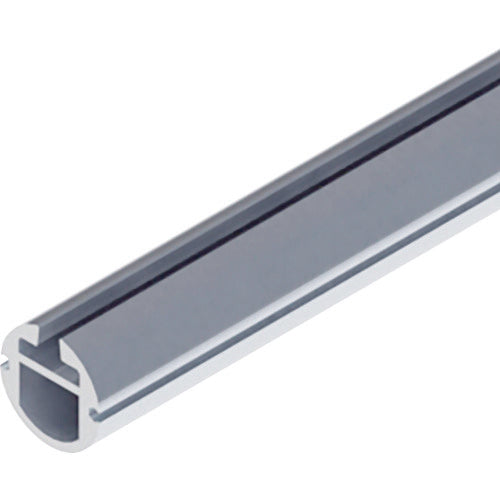

DAIKEN Material Handling Pipe Rail MTC Rail L2000 MTC-HR2 1 piece

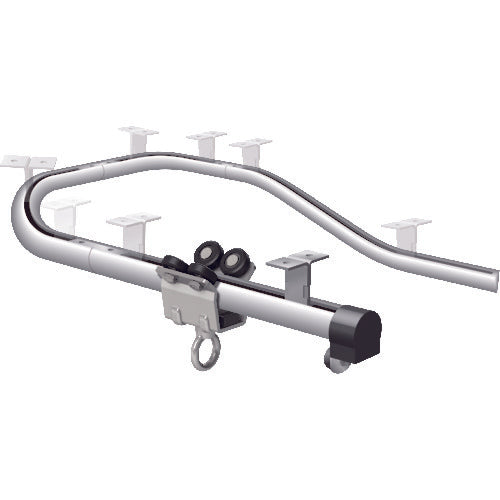

Catalog number: MTC-HR2 Features: ●The use of round rails allows for compact and flexible installation with small R (R200) ​​and vertical curves. ●Smooth running is achieved with the flexible movement of the hoist. ●Compact fit and smooth running improve factory productivity. ●Brackets can be attached at any position on the rail. Applications: ●For hanging power tools and transporting semi-finished products. Specifications: ●Product name: Three-dimensional pipe rail material handling rail ●Total length (mm): 2000 ●A (mm): 28 ●B (mm): 28 ●Pipe diameter (mm): 28 ●Bracket pitch load capacity: 60kg/500mm (using two double wheels), 40kg/600mm, 25kg/750mm Material/Finish: ●Rail: A6063S-T5 anodized aluminum
