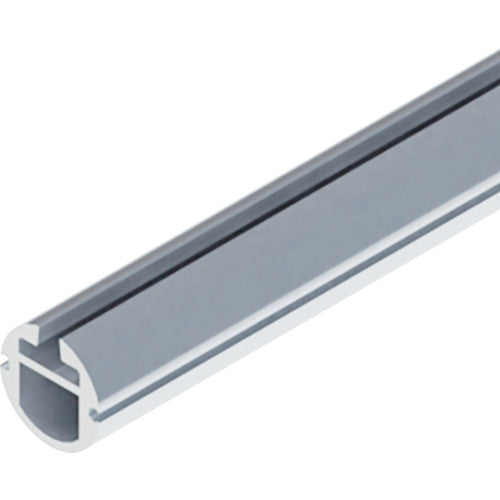

DAIKEN Material Handling Pipe Rail MTC Rail L3000 MTC-HR3 1 piece

Catalog number: MTC-HR3 Features: ●The use of round rails allows for compact and flexible installation with small R and vertical curves ●Smooth running achieved by flexible movement of the hoist ●Compact fit and smooth running improve factory productivity ●Brackets can be attached at any position on the rail Uses: ●Rails for running multiple cars. Specifications: ●Product name: Three-dimensional pipe rail material handling rail ●Total length (mm): 3000 ●A (mm): 28 ●B (mm): 28 ●Pipe diameter (mm): 28 ●Bracket pitch load capacity: 60kg/500mm (using two multiple cars), 40kg/600mm, 25kg/750mm Material/Finish: ●A6063S-T5 anodized aluminum
