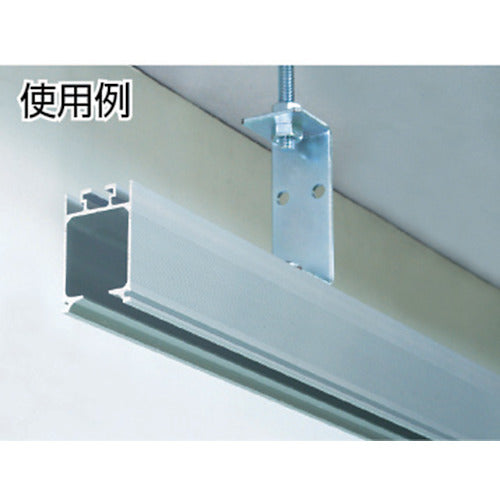

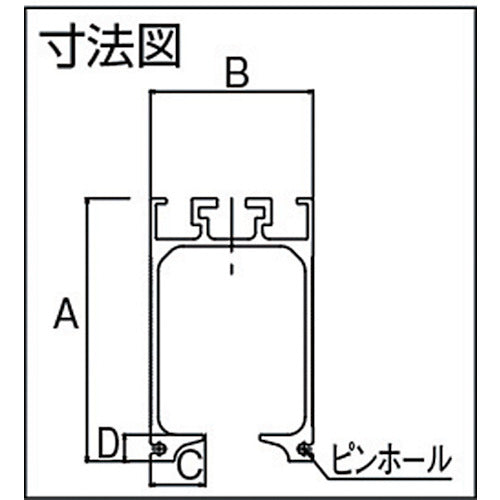

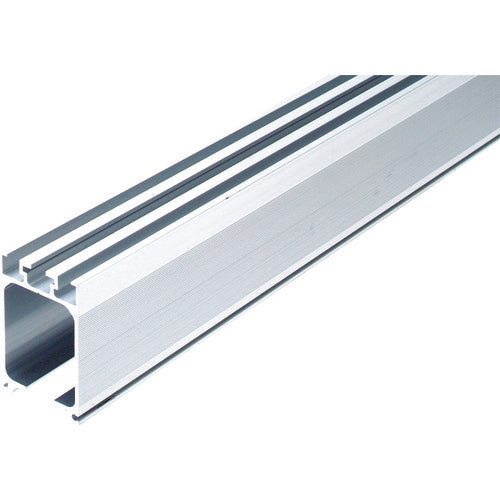

Catalog number: MTH3-HR30S Features: ●Brackets can be attached at any position on the rail. Applications: ●Railway for hoists to run on the inside. ●For moving products, setting molds, hanging tools, etc. Specifications: ●Name: Aluminum rail 3m ●Total length (mm): 3000 ●Load capacity (kg/piece): 50 (load capacity between mounting pitches) ●A (mm): 74.5 ●B (mm): 46 ●C (mm): 15 ●D (mm): 7.5 ●Mounting holes ●Total height (mm): 74.5 ●Total width (mm): 46 ●Install with a mounting pitch of 1000mm or less (joints are 100mm or less). Material/Finish: ●Aluminum (A6063S-T5)/Anodized clear Note: ●Load capacity is the value when brackets are installed at a pitch of 1000mm.
