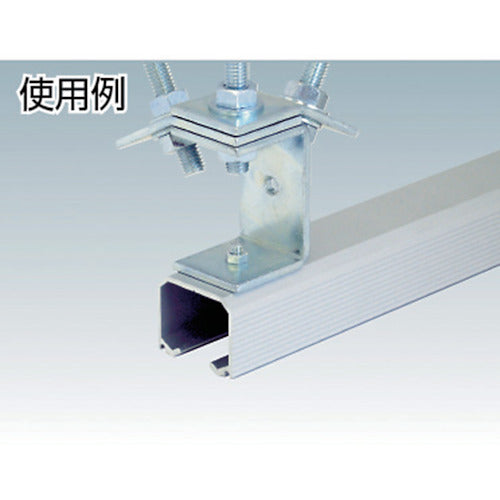

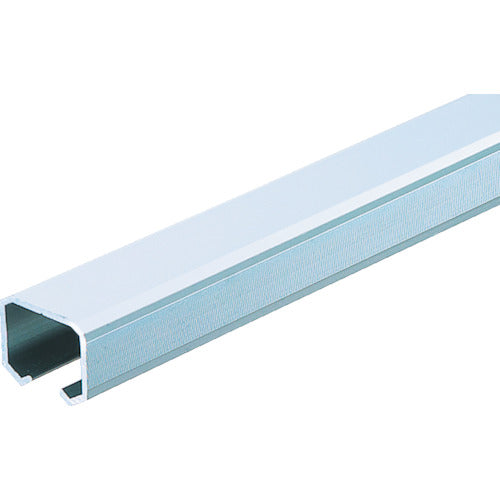

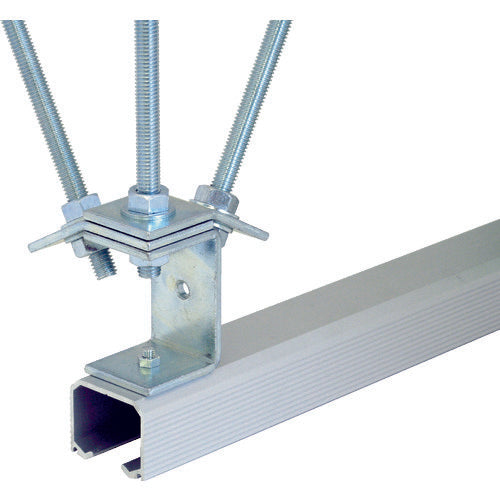

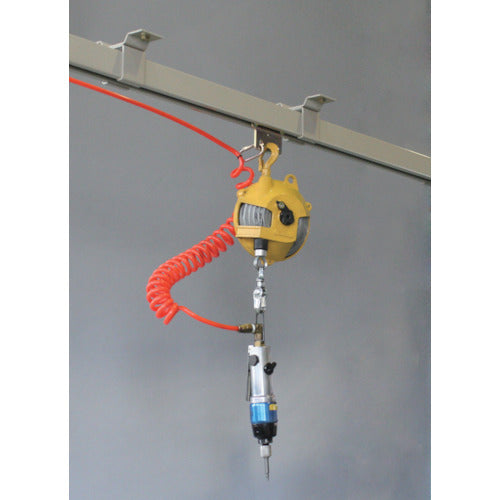

Catalog number: 10M-R18S Features: ● Joint pinholes are used to easily connect rails. Uses: ● Track for hoists to run on the inside. Specifications: ● Load capacity (kg): 30 (load capacity between mounting pitches) ● Total length (mm): 1820 ● Number of holes (pcs): 7 ● Number of included mounting screws (pcs): 7 ● Mounting hole pitch (mm): 297 Material/Finish: ● Aluminum (A6063S-T5) Set contents/Accessories: ● Mounting truss tapping screw nominal diameter 4 x 25 Notes: ● Load capacity is the value when brackets are installed at 300 mm pitch. ● Not compatible with MTH2 and MTH3. ● Rail load capacity is the value when brackets are installed at 300 mm pitch.
