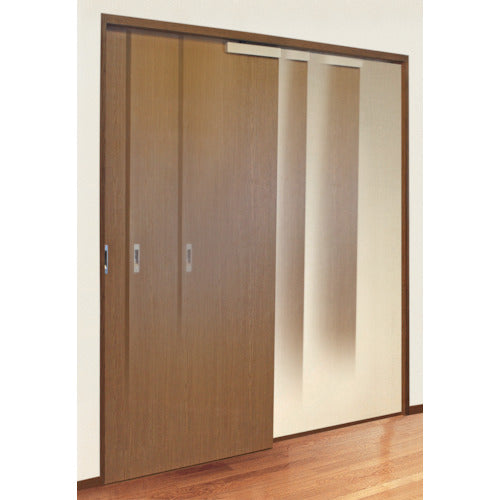

Catalog number: ECK-07G Features: ●When the door closes, the brake function closes slowly from 70 mm in front, reducing the "bang" sound, which is effective for soundproofing. ●Even after the main unit is installed, it can be opened and closed with an opening force of approximately 1 kgf or less. ●It can be installed on either side, so it can be installed on either side. ●It prevents the door from bouncing back and closes securely, improving the efficiency of indoor heating and cooling, leading to energy savings. ●Easy installation in about 5 minutes. ●After installing the device, it can be opened and closed with an opening force of approximately 1 kgf. ●It has passed a durability test of 200,000 times. Uses: ●For indoor V-rail and Y-rail wooden sliding doors. Specifications: ●Color: Champagne gold ●Width (mm): 326.5 ●Depth (mm): 23.4 ●Height (mm): 44 ●Installable opening force (N): 6.9 ●Sliding door retraction type ●Usable temperature range (degrees): 0 to 40 Material/Finish: ●Resin Caution: ●Cannot be used with round rails and threshold types. ●Outdoors and bathrooms not allowed
