DAIKEN Steel Frame Heavy Duty Door Roller Wheel Diameter Φ100 F-100 1 pc

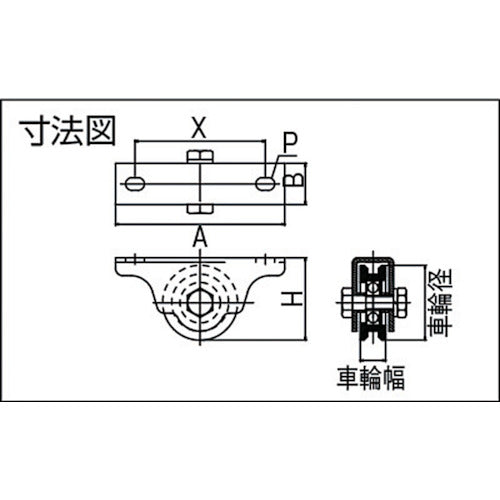

Catalog number: F-100 Features: ●Ball bearings ensure robust and smooth rotation. ●Since the shaft is bolt-nut type, only the wheel can be replaced. Applications: ●For angles and flat bars. ●For lowering heavy doors. Specifications: ●Wheel diameter (mm): 100 ●Wheel width (mm): 30 ●Mounting height H (mm): 110 ●Mounting seat A (mm): 220 ●Mounting seat B (mm): 42 ●Mounting pitch X (mm): 186 ●Mounting hole diameter P (mm): 13 x 19 ●Allowable load (kg): 250 Materials/Finish: ●Frame: Steel (electrolytic zinc plating) ●Wheels: Steel (carbon steel) Notes: ●The load capacity is based on a 100,000km running test.
