DAIKEN Steel Frame Heavy Duty Door Roller Wheel Diameter Φ80 F-80 1 pc

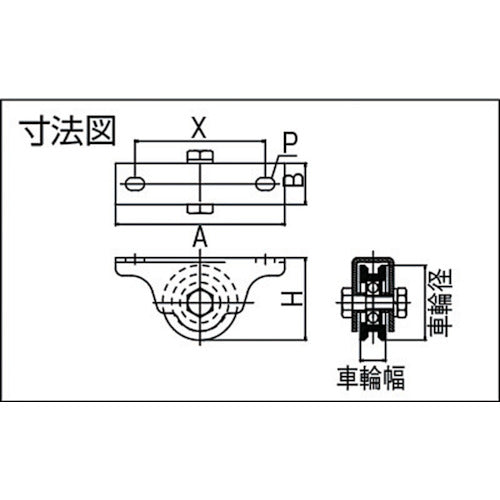

Catalog number: F-80 Features: ●Ball bearings ensure robust and smooth rotation. ●The shaft is bolt-nut type, so only the wheel can be replaced. Applications: ●For angles and flat bars. ●For lowering heavy doors. Specifications: ●Wheel diameter (mm): 80 ●Wheel width (mm): 25 ●Mounting height H (mm): 88 ●Mounting seat A (mm): 170 ●Mounting seat B (mm): 34.5 ●Mounting pitch X (mm): 136 ●Mounting hole diameter P (mm): 10 x 14 ●Allowable load (kg): 150 Materials/Finish: ●Frame: Steel (electrolytic zinc plating) ●Wheels: Steel (carbon steel) Notes: ●The load capacity is based on a 100,000km running test.
