DAIKEN Steel Frame Heavy Duty Door Roller Wheel Diameter Φ90 F-90 1 pc

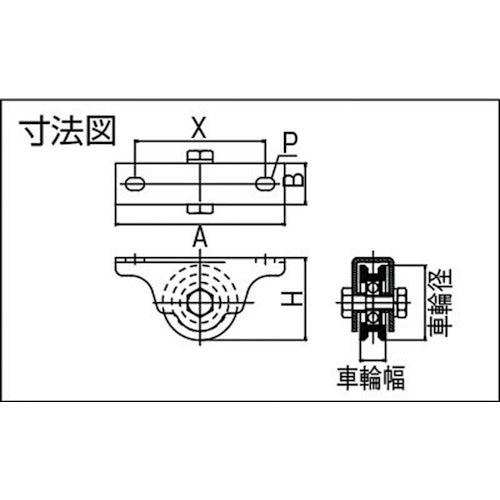

Catalog number: F-90 Features: ●Ball bearings ensure robust and smooth rotation. ●The shaft is bolt-nut type, so only the wheel can be replaced. Applications: ●For angles and flat bars. ●For lowering heavy doors. Specifications: ●Wheel diameter (mm): 90 ●Wheel width (mm): 28 ●Mounting height H (mm): 100 ●Mounting seat A (mm): 200 ●Mounting seat B (mm): 40 ●Mounting pitch X (mm): 160 ●Mounting hole diameter P (mm): 13 x 19 ●Allowable load (kg): 200 Materials/Finish: ●Frame: Steel (electrolytic zinc plating) ●Wheels: Steel (carbon steel) Notes: ●The load capacity is based on a 100,000km running test.
