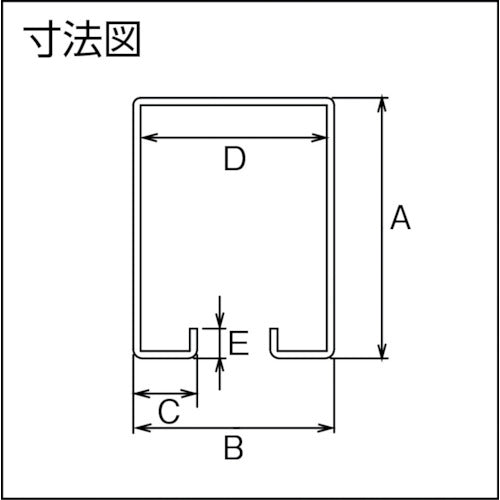

Catalogue number: 2S-HR3640 Usage: ● As a track for a hoist to run on the inside. Specifications: ● Load capacity (kg): 35 ● Total length (mm): 3640 ● Plate thickness (mm): 1.2 ● A (mm): 45 ● B (mm): 39 ● C (mm): 12.0 ● D (mm): 36.6 ● E (mm): 5.0 Material/Finish: ● Stainless steel (SUS304) Note: ● The load capacity is the value when brackets are installed at 450 mm pitch.
