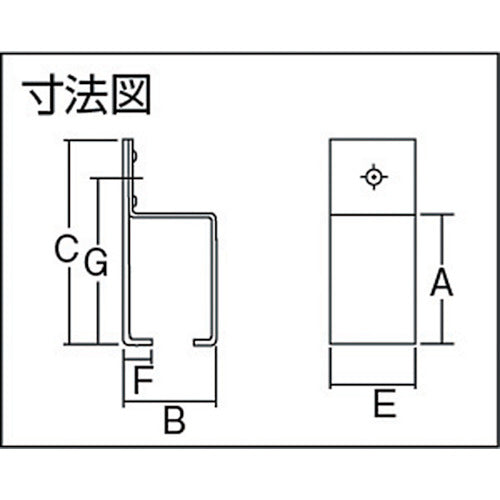

Catalog number: 2-SB Usage: ● As a bracket for attaching a hanger rail to the wall of a structure. Specifications: ● Product name: Horizontal bracket series ● Suitable rail: No. 2 ● A (mm): 57 ● B (mm): 47 ● C (mm): 86 ● Hole diameter (mm): 10.0 ● G (mm): 71 ● F (mm): 13 ● E (mm): 48 ● Plate thickness (mm): 3 Material/Finish: ● Steel
