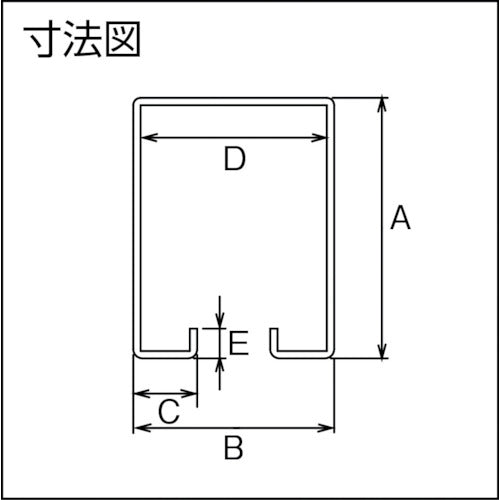

Catalogue number: 3S-HR1820 Usage: ● As a track for a hoist to run on the inside. Specifications: ● Load capacity (kg): 75 ● Total length (mm): 1820 ● Plate thickness (mm): 1.5 ● A (mm): 57 ● B (mm): 44 ● C (mm): 14.0 ● D (mm): 41.0 ● E (mm): 6.5 Material/Finish: ● Stainless steel (SUS304) Note: ● The load capacity is the value when brackets are installed at 450 mm pitch.
